Introduction – The Ackling Dyke Investigation

This is the first in a new series of investigations into Ackling Dyke, one of Britain’s most confidently labelled — yet surprisingly poorly understood — ancient linear earthworks.

The conventional story is familiar. Ackling Dyke is presented as a Roman road running from Old Sarum towards Badbury Rings, with its enormous banks simply interpreted as an unusually substantial Roman agger. Once that interpretation appears on an Ordnance Survey map, a Historic Environment Record or a Scheduled Monument entry, it tends to be repeated as established fact.

This series starts from a different position:

What happens if we ignore the label and examine the physical landscape first?

Rather than assuming that the Roman route and the monumental earthwork beneath it were constructed at the same time, each surviving section will be examined independently using the original 1 metre Digital Terrain Model LiDAR, historic maps, aerial photography, palaeochannels, extraction features and the published archaeological record.

The first results already show why that distinction matters.

At Moor Crichel, the supposed continuous Roman road changes dramatically in scale and appears to terminate against former waterways. Quantitative cross-sections demonstrate that supposedly continuous parts of the earthwork have markedly different dimensions. At Sovell Down, deep engineered cuts appear physically connected with a large extraction hollow and lower channel rather than resembling a conventional raised Roman road. Farther north, Ackling Dyke becomes a massive bank-and-ditch construction almost alongside earthworks that archaeology itself accepts as prehistoric. Pasted text Pasted text

That gives us the central question for the whole series:

Are we looking at one Roman road constructed from end to end, or a later Roman route which incorporated and connected much older dykes, water-management features and transport infrastructure?

The important difference is that this investigation will attempt to measure rather than merely describe.

Each major section will be compared using the same criteria: bank height, bank width, ditch depth, cross-sectional area, construction form, relationship with palaeochannels, relationship with extraction pits and its connection with recognised prehistoric earthworks. The aim is to establish whether Ackling Dyke really represents one consistent engineering tradition or whether the mapped Roman route joins together several physically different structures. The first Moor Crichel measurements have already identified substantially different construction types along what is normally presented as one continuous monument.

This is therefore not simply another article about a Roman road.

It begins a section-by-section reconstruction of an ancient landscape.

From Blog Series to a New Book

These articles will also form the research foundation for a new book planned for late 2026.

Over the last several years I have produced four books examining Britain’s great prehistoric dyke and canal systems. Those investigations have repeatedly raised the same possibility: many monuments now explained as boundaries, defensive works or later roads may originally have belonged to a much older system of water transport, extraction, processing and landscape engineering.

Ackling Dyke gives us an opportunity to test that model in exceptional detail.

Instead of examining only isolated surviving fragments, we can follow a long recognised route through changing topography and ask what happens at every major transition. Where does the monumental bank begin and end? Where does it meet palaeochannels? Where do extraction pits occur? Where do accepted prehistoric dykes join it? Where does the structure suddenly become smaller? And where is there actual archaeological evidence that the underlying earthwork — rather than merely the later road surface — was Roman?

The resulting book will bring these observations together into a broader Prehistoric Canal Dyke Investigation, complementing my existing four volumes while extending the methodology further through quantitative LiDAR analysis.

Each blog in this series will therefore become part of that research record.

Some sections may support the existing archaeological interpretation.

Others may not.

The objective is not to make the landscape fit a predetermined chronology, but to follow the physical evidence and compare competing explanations.

The working hypothesis being tested is that large prehistoric dykes may have formed components of a sophisticated hydrological and transport network — linking extraction and production areas on higher ground with rivers and palaeochannels below — and that later peoples, including the Romans, subsequently reused parts of that infrastructure as terrestrial roads as Britain’s waterways changed.

Ackling Dyke is an ideal place to test that proposition because the traditional interpretation gives us something very specific against which the physical evidence can be compared.

Moor Crichel and The Rookery,

The southern starting point for this investigation is Moor Crichel and The Rookery, where this part of the landscape records the only scheduled monument section of Ackling Dyke.

This makes it the logical place to begin moving northwards, because here we have a substantial surviving earthwork that can be examined directly against the LiDAR, historic mapping and the local topography.

What immediately becomes apparent is that the physical landscape does not comfortably match the simplified description of Ackling Dyke as one continuous Roman road running in a straight line from Old Sarum to Badbury Rings.

The first important feature is the concentration of large extraction hollows around The Rookery. Historic OS mapping marks several of these as “Chalk Pits”, but that should not be treated as proof that chalk was the material being extracted. These are cartographic labels rather than the result of archaeological excavation or mineralogical analysis. On the LiDAR, they are substantial landscape features, and the old maps do not individually label additional quarry-like pits nearby.

The significance of these pits becomes clearer when we examine their relationship with the dyke.

The substantial cut-and-bank feature begins on the higher ground and runs directly down the slope toward the low-lying palaeochannel. The LiDAR clearly shows the engineered nature of the earthwork: this is not simply a faint footpath or modern field boundary, but a major linear feature descending from the extraction area.

Crucially, however, the same substantial bank does not visibly continue across the palaeochannel.

This is the first major problem with the conventional interpretation.

If this were originally a continuously constructed Roman road designed to run uninterrupted from Old Sarum toward Badbury Rings, we might reasonably expect the monumental earthwork to continue across the valley and reappear on the opposite side with a comparable scale and form.

Instead, the major bank appears to terminate at the former watercourse.

Beyond the palaeochannel, what can be followed is much weaker — more consistent with a minor trackway or pathway than with the enormous engineered earthwork seen descending the hill.

This distinction matters because later mapping effectively joins these different landscape features and labels the combined alignment as the Roman road known as Ackling Dyke. Once that interpretation is placed on an OS map, it is easy for subsequent researchers to assume the mapped road line and the original dyke are one and the same feature.

The LiDAR suggests that assumption deserves questioning.

A different functional explanation becomes possible when viewed in relation to the hydrology.

The large extraction features are located on the higher ground. The major cut-and-bank feature descends from that area directly toward the palaeochannel. If that channel contained navigable water when the feature was constructed, then the arrangement makes practical sense as a transport route: material could be moved downhill from the extraction area to the water’s edge and transferred into waiting boats.

Under this interpretation, the original substantial earthwork would have no reason to continue across the water.

The palaeochannel would be its destination.

This would also explain why the morphology changes so dramatically beyond it.

The lighter track seen continuing across the landscape may belong to a later phase of use. Once water levels fell and the former channels became dry or less useful for navigation, the Romans could have incorporated surviving sections of the earlier earthwork into their terrestrial road system, extending lighter road or track sections between the major pre-existing banks.

In other words, what is mapped today as one continuous Roman road may actually represent several different phases of landscape use:

extraction area → substantial dyke or transport bank → palaeochannel → later connecting track or Roman road.

The same pattern becomes particularly significant farther north, where the supposed Ackling Dyke alignment again reduces to a much smaller route as it approaches another palaeochannel.

This raises the central question that will run throughout this investigation:

Are we really looking at a Roman road constructed continuously across the landscape, or a Roman road system that later incorporated and connected much older dyke features whose original purpose was connected with water transport?

At Moor Crichel and The Rookery, the physical evidence gives us our first reason to consider the second possibility.

Supporting images for this section

Ackling Dyke - Facts and the Archaeological Fiction

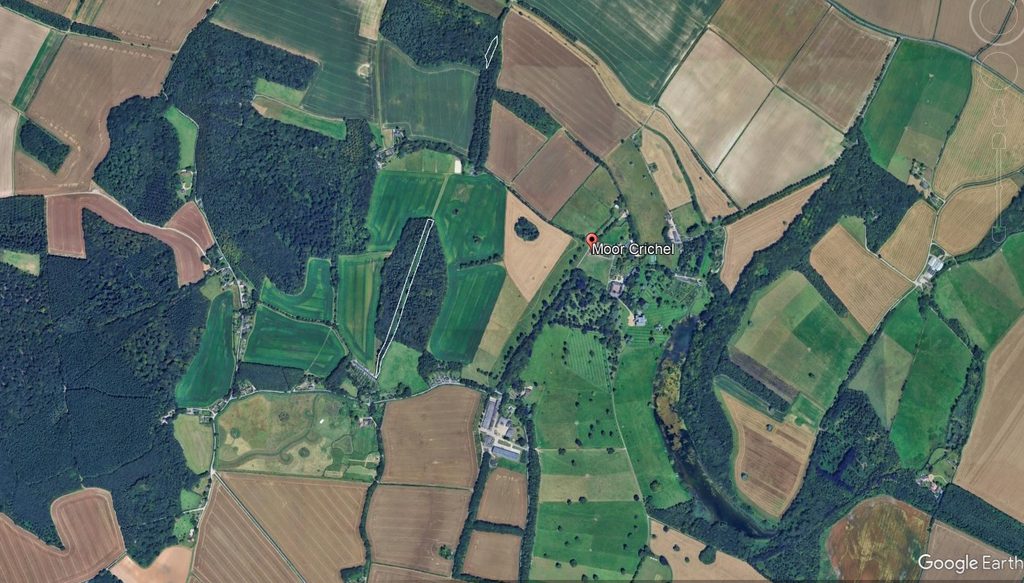

Figure 1 – Modern aerial view of Moor Crichel and The Rookery
The present landscape showing the wooded Rookery feature west of Moor Crichel and the surrounding extraction landscape.

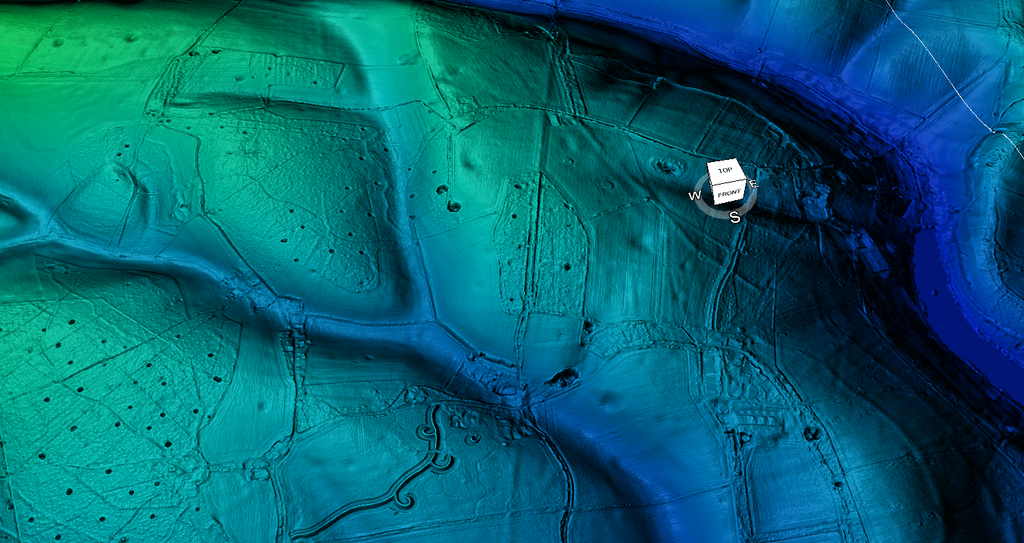

Figure 2 – 1 m LiDAR terrain model
The substantial cut-and-bank earthwork descending from the higher ground toward the palaeochannel is clearly visible. The numerous large extraction pits across the surrounding landscape are also much more apparent than on conventional mapping.

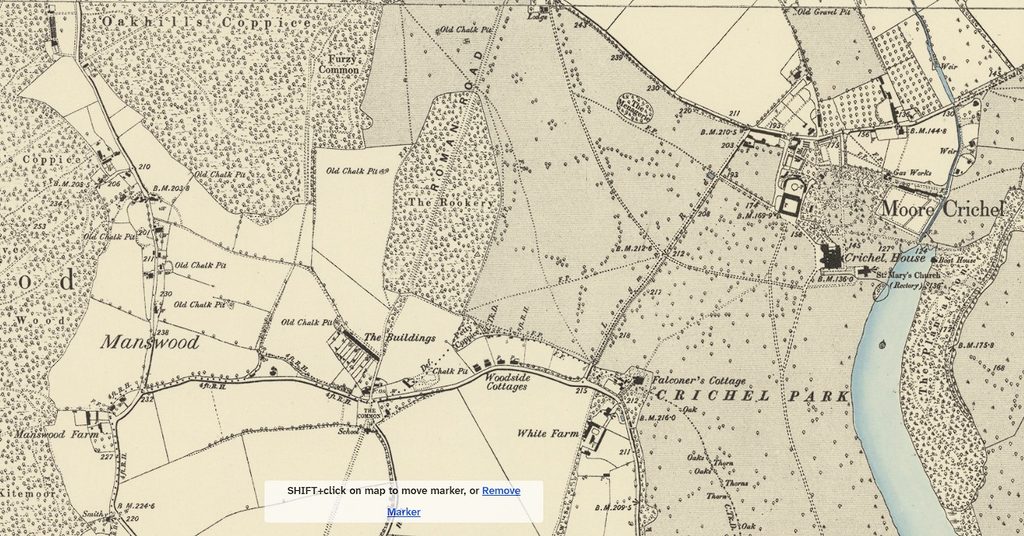

Figure 3 – Historic OS mapping of The Rookery and Crichel Park
Several major extraction areas are labelled as “Old Chalk Pit”, although these labels should not be confused with archaeological proof of what mineral was being extracted. The historic map also shows how the later road and path network has been imposed across the older landscape.

The significance of this first section is therefore not merely that Ackling Dyke survives here. It is that the form, direction, and apparent termination of the earthwork make much more sense when examined alongside the palaeohydrology than when treated automatically as a continuous Roman road.

Yes. With the raw 1 m DTM measurements, we can now finish the Moor Crichel – The Rookery section with something much stronger than visual interpretation alone.

I would write it like this, while keeping the dating explicitly as a testable relative chronology rather than pretending LiDAR alone provides an absolute date.

Quantitative LiDAR Analysis – Identifying Different Construction Phases

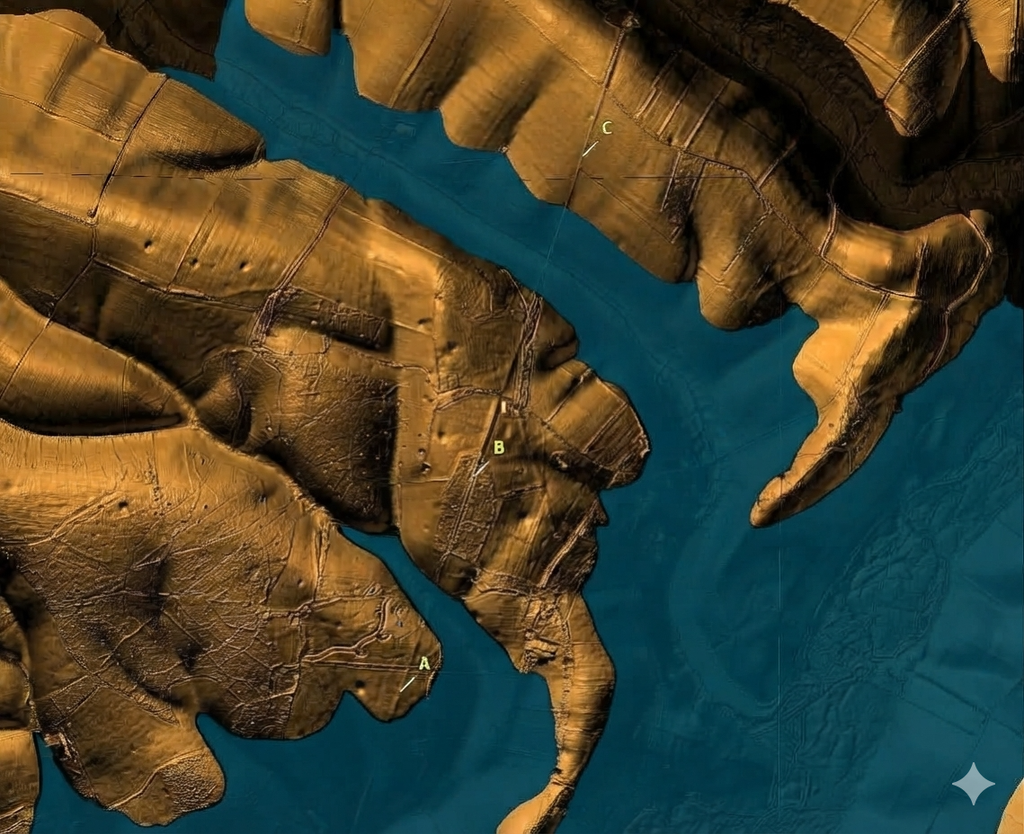

Visual examination of the LiDAR suggested that the feature traditionally mapped as one continuous section of Ackling Dyke was not uniform. To test this objectively, three cross-sections — A, B and C — were selected along the mapped alignment and measured directly from the original 1 m DTM elevation data.

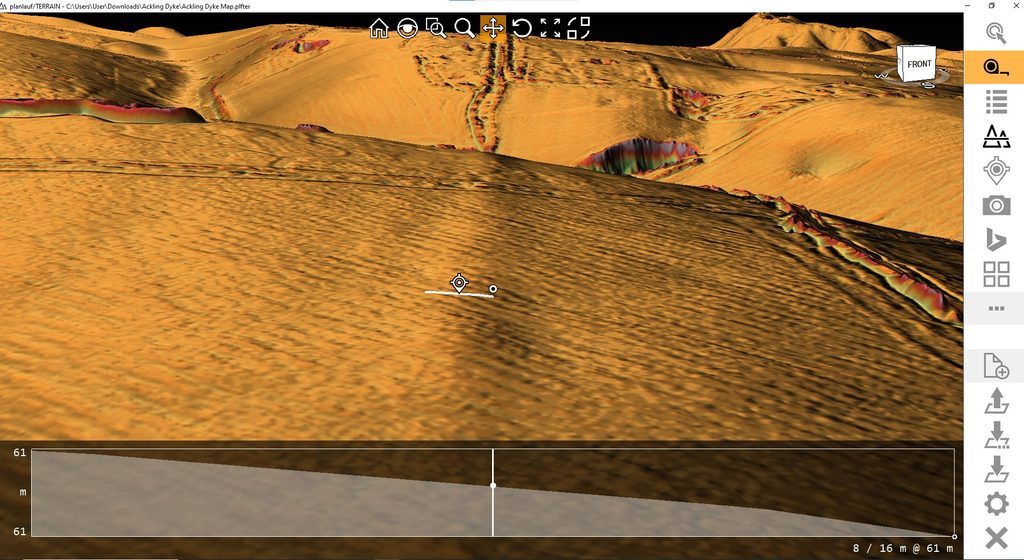

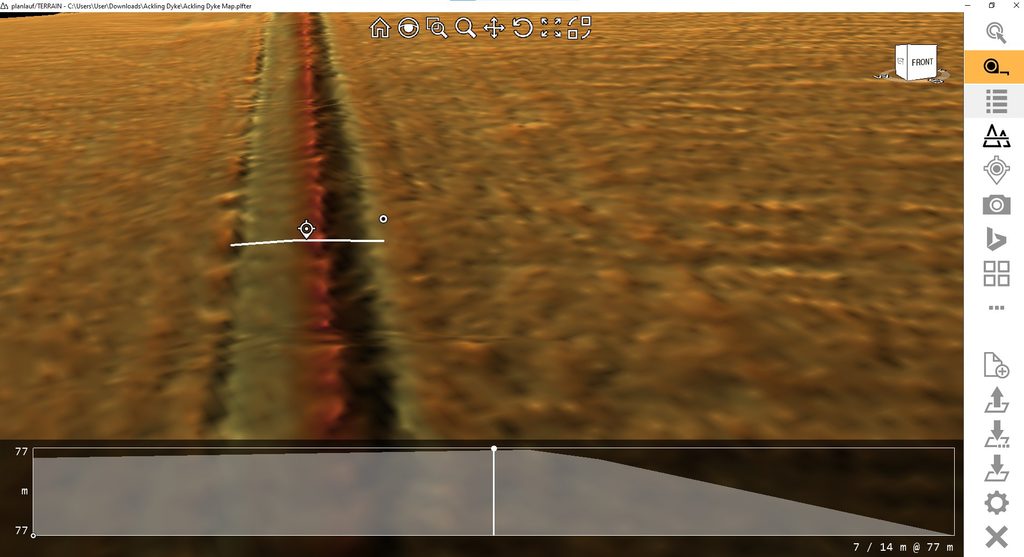

Each profile was taken perpendicular to the earthwork alignment. The broader natural hillside gradient was then mathematically reconstructed from the undisturbed ground on either side, allowing the artificial bank or cut to be measured relative to the original landscape rather than simply measuring absolute height above sea level.

This is important because the three sections lie on sloping ground. A simple height measurement could therefore exaggerate or conceal the true scale of the construction.

The results were:

Section	Height above reconstructed natural surface	Approx. raised width	Raised cross-sectional area
A	0.17 m	~15 m	2.15 m²
B	0.56 m	~15 m	5.59 m²
C	0.50 m	~16 m	4.39 m²

The differences are substantial.

Section B rises approximately 3.4 times higher than A, while C is almost 3 times higher than A.

The calculated earthwork cross-sectional area shows the same pattern:

B is approximately 2.6 times larger than A, while C is approximately twice the scale of A.

B and C are therefore much closer to one another than either is to A.

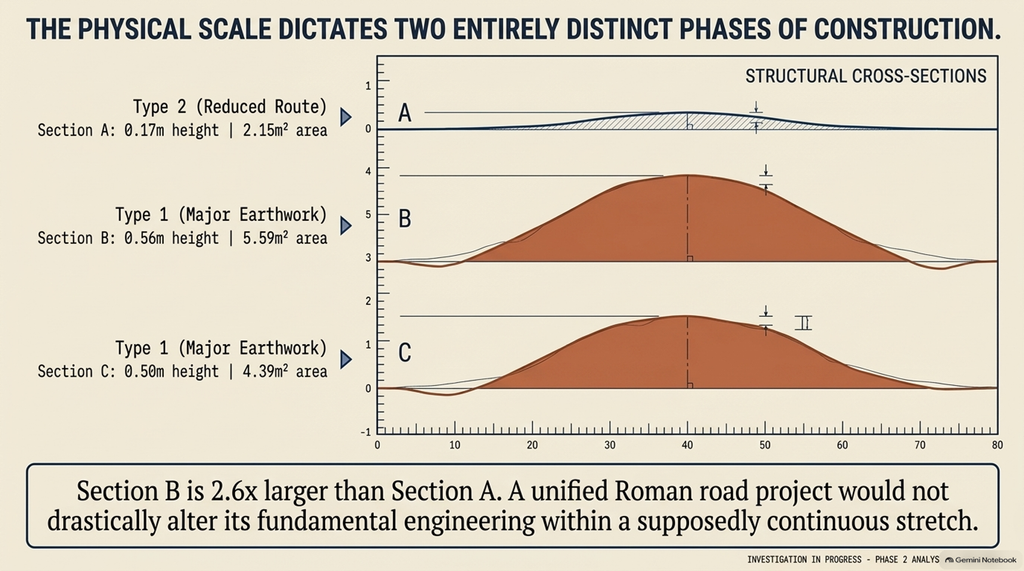

Two Distinct Construction Types

The numerical results suggest that the three profiles do not represent one consistently engineered structure.

Instead, the first Moor Crichel sample divides naturally into two morphological groups.

Sections B and C are substantial engineered earthworks. Both retain roughly half a metre of artificial relief above the reconstructed natural surface and possess cross-sectional areas of approximately 4.4–5.6 m².

Section A, by contrast, is much shallower, rising only around 17 cm above the reconstructed natural landscape.

This is not merely a difference in preservation visible to the eye. It is measurable in the underlying elevation data.

The simplest preliminary classification is therefore:

Type 1 – Major Earthwork: Sections B and C
Type 2 – Reduced/Secondary Earthwork: Section A

This immediately raises an important chronological question.

If Ackling Dyke had been constructed as one continuous Roman road project using broadly the same engineering principles, why does one part of the supposed road possess only a fraction of the earthwork represented immediately farther along the same alignment?

Natural erosion and later agricultural activity must certainly be considered, but the magnitude of the difference makes it reasonable to test whether we are actually looking at different phases of construction.

A Possible Relative Chronology

Within the Post-Glacial Flooding Hypothesis, ditch depth and earthwork scale become particularly important.

The hypothesis proposes that many major prehistoric dykes originally interacted with a wetter landscape in which valleys and palaeochannels contained considerably more water than today. In such circumstances, substantial cuts and banks could have had a hydrological and transport function rather than simply representing terrestrial boundaries or roads.

Under this model, the larger sections at B and C would be candidates for the earlier construction phase.

Their much greater scale is compatible with an earthwork intended to function beside or with water—whether for drainage, canalisation, water control, transport, or moving materials toward a navigable palaeochannel.

Section A could represent a significantly later modification.

Its shallow profile would require substantially less excavation and bank construction and would be entirely adequate for a later terrestrial track or road using an already established alignment.

This produces a possible sequence:

Phase 1 – Major dyke construction
B and C: substantial bank/cut earthworks associated with the earlier hydrological landscape.

Phase 2 – Declining water levels and route reuse
The original water-related function becomes progressively less important as palaeochannels diminish.

Phase 3 – Later terrestrial route
A much shallower road or track is constructed to connect surviving sections of the earlier dyke system.

Within the hypothesis being tested here, Phases 1 and 2 could potentially extend back into the Mesolithic or later prehistoric period, whereas the shallow connecting phase could include Roman reuse or extension.

At present, however, those are chronological interpretations rather than absolute dates.

Why Depth Cannot Be Used as a Clock by Itself

There is an important qualification.

A shallower surviving feature is not automatically younger.

Ditches can become shallower through sedimentation, ploughing, erosion and deliberate infilling. Conversely, an older feature can sometimes survive better than a younger one.

For that reason, the working proposition is not simply:

“shallow = recent; deep = ancient.”

The stronger test is whether the same pattern repeatedly occurs throughout Ackling Dyke:

large earthworks associated with palaeochannels and extraction areas, followed by smaller connecting sections where the hydrological relationship disappears.

If that pattern repeats ten or more times, the probability that we are simply observing random preservation differences becomes much smaller.

This is why the remaining Ackling Dyke sections are important.

The First Result

The Moor Crichel pilot therefore produces our first measurable indication that the feature mapped as Ackling Dyke may contain more than one construction type.

The most substantial profile, B, has a raised cross-sectional area of 5.59 m².

C measures 4.39 m².

A falls to only 2.15 m².

Rather than a uniform Roman agger, the first three samples therefore produce a sequence of:

minor/reduced earthwork → major earthwork → major earthwork.

That difference supports the original LiDAR observation: the line drawn on the map may be continuous, but the engineering beneath it need not be.

The next stage is to repeat exactly the same measurement procedure at the remaining sections of Ackling Dyke.

If the major sections repeatedly cluster around one range of dimensions while the supposed connecting Roman road sections consistently fall into a much smaller group, we will have identified statistically distinct construction classes.

Even more significant would be a repeated relationship of:

major earthwork → palaeochannel → reduced track → major earthwork.

That would provide quantitative support for the hypothesis that the Romans did not necessarily construct the entire feature now called Ackling Dyke, but instead incorporated substantial earlier earthworks into a later terrestrial road network.

And that is something we can now test rather than simply argue about.

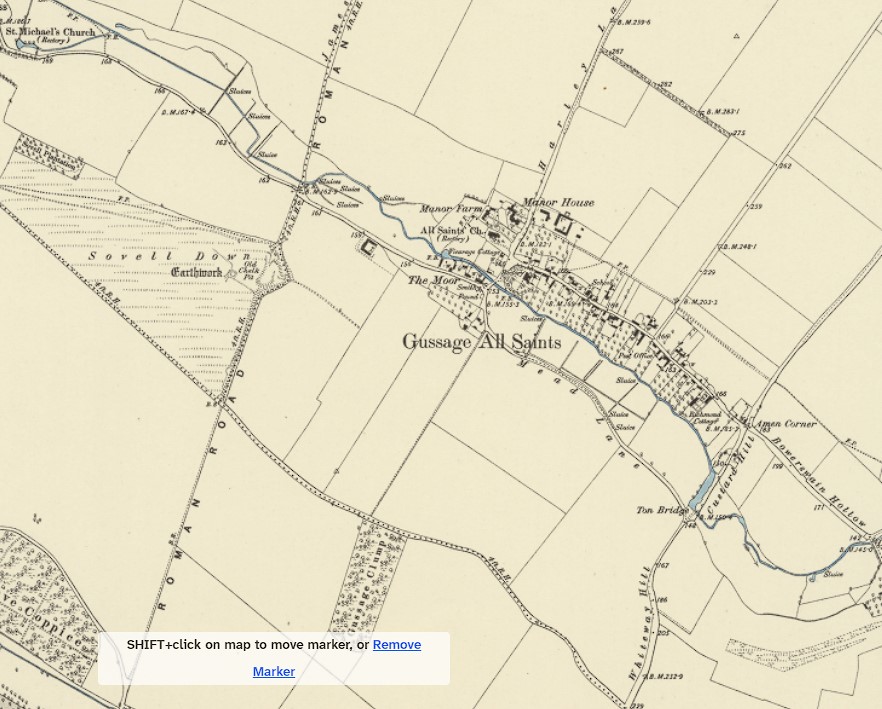

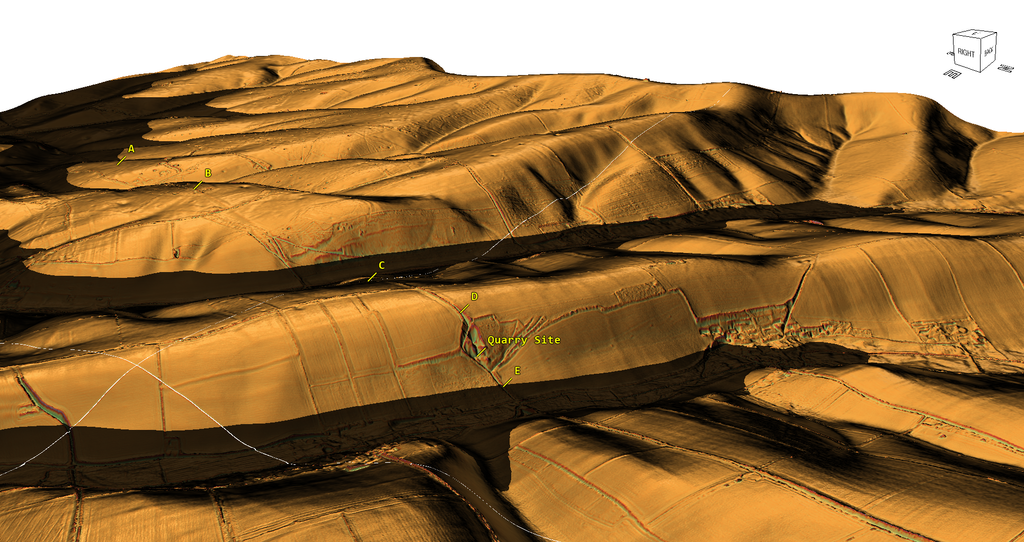

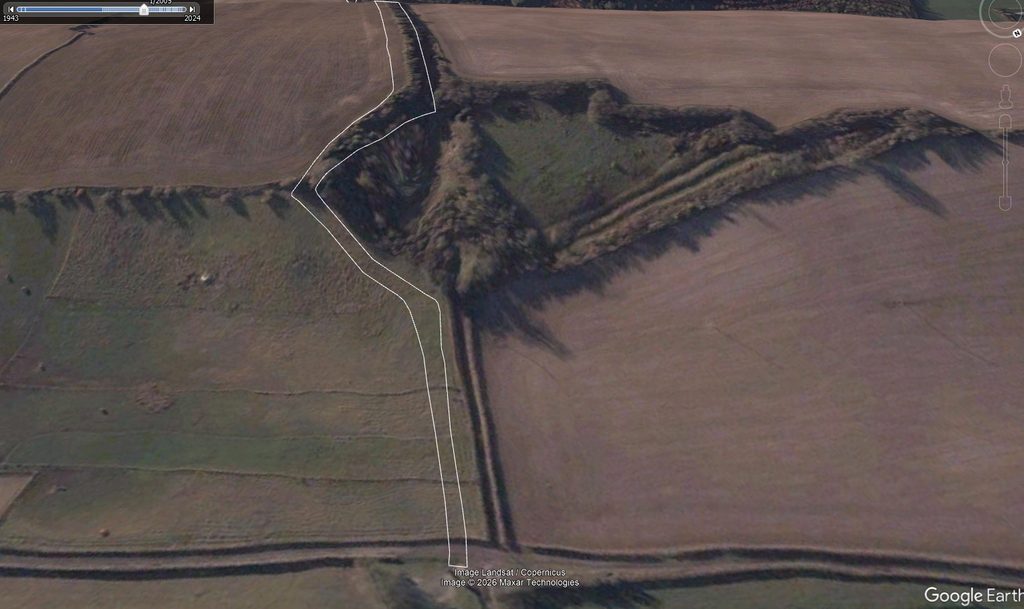

Sovell Down – The Quarry, D and E: A Roman Road or a Prehistoric Hydraulic System?

Sovell Down may prove to be one of the most important sections of this investigation, because here the LiDAR does not merely show variations in the size of the earthwork. It shows a physical relationship between a major linear cut, a substantial quarry and a second lower channel.

That relationship gives us something potentially far more useful than another line marked “Roman Road” on an OS map: a sequence we can test against engineering logic.

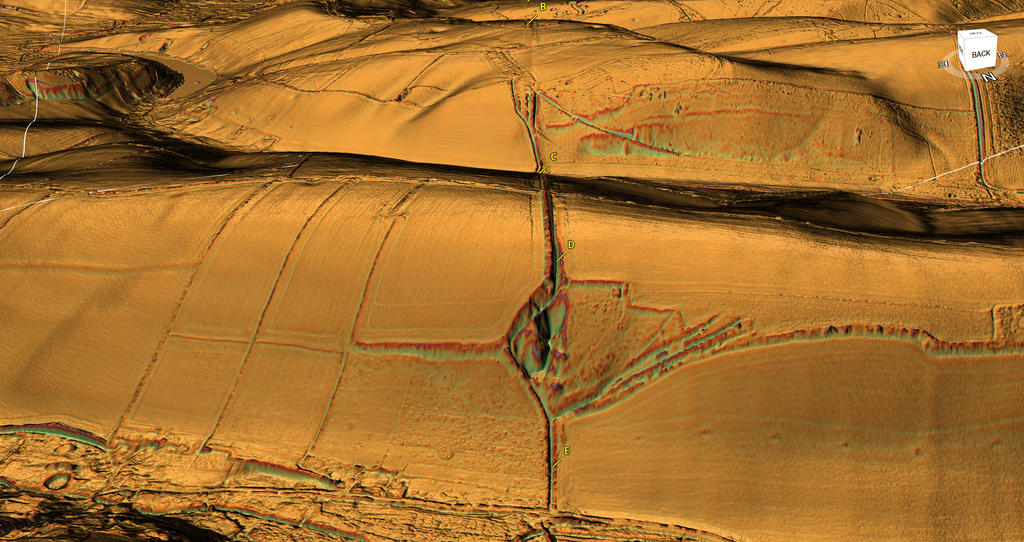

What the LiDAR actually shows

The higher feature at D is not simply a shallow roadside ditch. It is a substantial incision into the hillside.

Using the original 1 m DTM rather than the coloured rendering, a transverse profile across D gives a maximum cut of approximately 1.76 m below the reconstructed local ground surface. Using a conservative 0.10 m threshold, the principal incised section is about 7.5 m wide.

Farther downslope, E is a distinctly smaller feature. Its maximum cut is approximately 0.74 m, with the principal depression around 5 m wide.

So D and E are not simply two identical roadside drains.

They represent two noticeably different engineering features.

Feature	Elevation	Approx. cut depth	Principal cut width
D	86.35 m	~1.76 m	~7.5 m
Quarry	65.90 m	—	—
E	52.93 m	~0.74 m	~5 m

The elevations make the relationship even more interesting.

From D to the quarry, the terrain falls about 20.5 m over approximately 129 m horizontally.

From the quarry to E is another 117 m, with a further fall of approximately 13 m.

Overall, D and E are separated by roughly 243 m horizontally but more than 33 m vertically.

This is therefore emphatically not a level navigation canal.

But there is no reason why an extraction system should have been.

The Feature at D Appears to Feed the Quarry

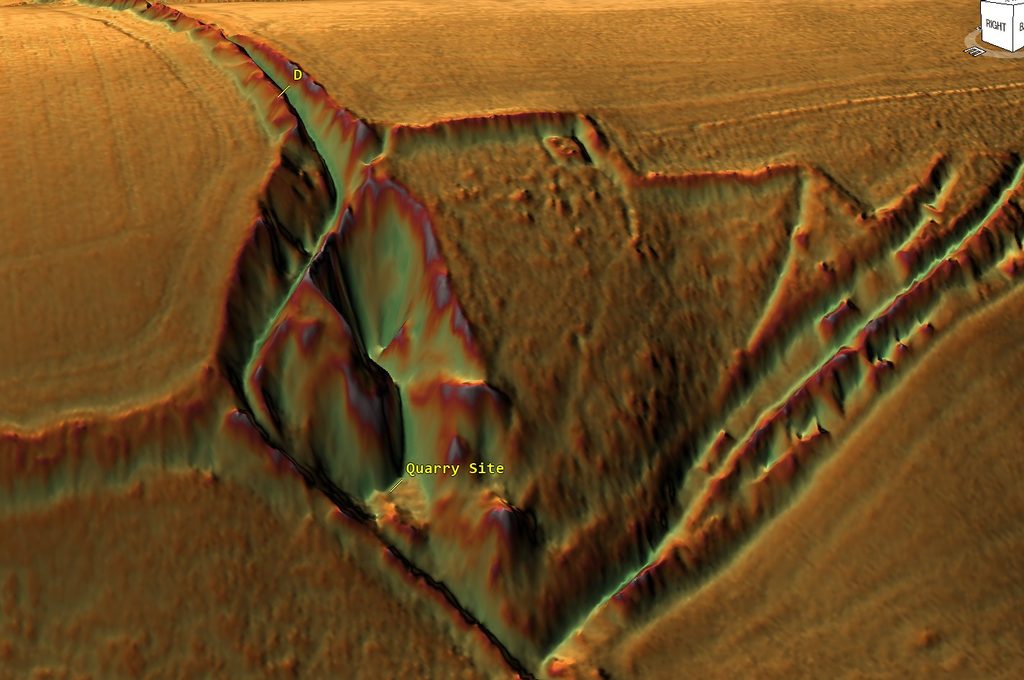

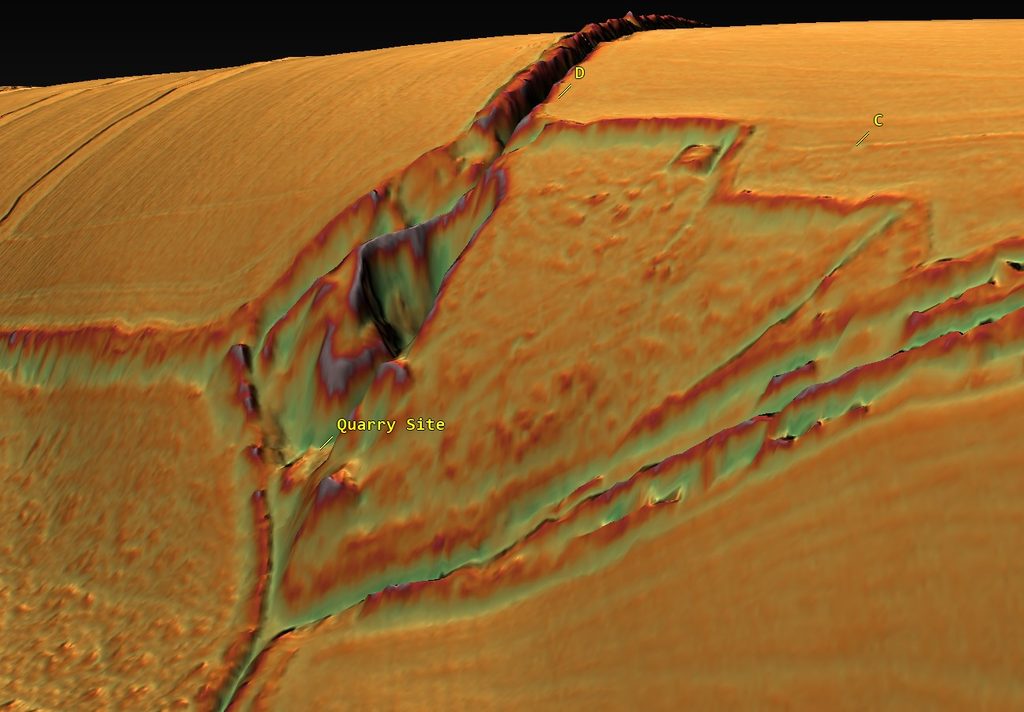

The oblique LiDAR view is particularly revealing.

The substantial upper cut at D does not appear simply to pass beside the quarry.

It descends directly into it.

Equally significant, another lower feature appears to leave the quarry downslope.

The morphology can therefore be read as:

upper deep cut → quarry/extraction hollow → lower channel

That is very different from a Roman road conveniently passing through the landscape.

Indeed, the supposed “zig-zag road” explanation becomes particularly difficult here because the major upper linear feature does not seem to execute a neat bend around the quarry.

It falls into the quarry itself.

That distinction matters.

If this were simply a Roman road negotiating steep terrain, we would expect engineers to focus primarily on maintaining a usable road surface across the slope.

Instead, the LiDAR appears to show a linear cut whose geometry is intimately connected to the extraction feature.

Is D Actually a Water-Supply Channel?

This raises another possibility which may explain why D is both higher and substantially deeper than E.

The deep upper ditch may have been intended to intercept groundwater or a spring horizon.

In such a system, the depth is functional.

The builders would not merely be digging a channel across the ground surface. They could have cut into the hillside until they intercepted a reliable water supply, then used gravity to direct it toward the extraction area.

The system would therefore operate something like:

groundwater/spring horizon
↓
deep collecting ditch D
↓
gravity-fed water supply
↓
quarry/processing area
↓
lower drainage or transport channel
↓
river / palaeochannel

That would explain why the upper ditch is much deeper than the lower one.

D could be the water-capture feature.

E could be the lower discharge or transport channel.

For now, this remains a hypothesis: LiDAR cannot tell us whether D actually intercepted groundwater, and we still need geological and hydrological evidence to establish the historic water table.

But the physical arrangement is precisely what we would test if that hypothesis were correct.

The Gradient Is an Advantage, Not a Problem

It would be a mistake to judge this system using the engineering requirements of a later canal carrying passenger or cargo boats along a nearly level water surface.

This is an extraction landscape.

Its problem is different:

How do you move heavy extracted material from high ground down to a navigable river?

Gravity is useful.

The 20 m fall between D and the quarry could provide considerable hydraulic energy.

Water running down such a channel could potentially have been used for:

washing extracted material;
separating heavier mineral from lighter waste;
flushing spoil;
supplying processing areas;
carrying smaller loads downslope;
or creating a controlled water chute.

Likewise, loaded containers or small craft could move downhill by gravity, while people or animals returned empty equipment uphill.

So the steepness does not invalidate the water-management hypothesis.

If anything, for mineral processing it may help explain the location.

This Does Not Resemble the Standard Roman Road Profile

Historic England describes the characteristic Roman road as a cambered and metalled agger, commonly around 4.5–7 m wide, often accompanied by roadside drainage ditches. Historic England

The morphology at D and E is not obviously that.

The dominant archaeological feature visible in the DTM is an incised channel cut into the existing hillside, particularly at D.

No obvious broad central raised platform is visible here, flanked by a matching pair of drainage ditches.

Roman engineers certainly did terrace roads into slopes, so this observation alone cannot prove the feature is pre-Roman.

But an incised earthwork should not automatically become a “Roman agger” simply because the later Roman route has been mapped along it.

That is exactly the assumption this investigation is questioning.

And We Already Know Sovell Down Had Pre-Roman Linear Earthworks

This landscape was not empty when the Romans arrived.

Published archaeological evidence records the excavation at Sovell Down of a linear ditch containing the headless skeleton of a man deposited around 300 BC — roughly three centuries before the Roman conquest.

That does not demonstrate that D or E is that particular ditch.

Nor does it date the quarry.

But it proves an important point:

Substantial linear earthworks already existed on Sovell Down before the Romans.

The same study notes that major linear ditch systems are normally assigned to the later Bronze Age and Iron Age, while acknowledging that they may have accumulated through several episodes rather than being constructed all at once.

So the assumption that every large linear cut encountered here must originate with the Roman road is increasingly difficult to justify without excavation.

The Quarry Becomes the Key

The quarry sits directly between the higher and lower features.

Its present archaeological date remains uncertain.

That makes the physical sequence extremely important.

There are several possibilities:

Roman-road interpretation:
The Romans constructed this entire system as part of Ackling Dyke, and the apparent relationship with the quarry is incidental or the result of later extraction.

Pre-existing quarry interpretation:
The extraction site already existed, and later road-builders adapted their route around or through an older industrial landscape.

Hydraulic interpretation:
D, the quarry and the lower channel were originally parts of a water-managed extraction and processing system which was subsequently reused by later travellers and ultimately incorporated into the Roman road network.

The LiDAR presently makes the third possibility particularly interesting because the features appear functionally connected:

D → QUARRY → LOWER CHANNEL

rather than merely lying beside one another.

The “Roman Zig-Zag” Explanation

Older descriptions have explained the unusual Sovell Down alignment as a Roman road zig-zagging because the hillside was too steep.

The LiDAR raises a serious problem with that explanation.

The substantial feature at D does not appear simply to snake around the quarry while maintaining a road terrace.

It descends into the extraction hollow.

That is an entirely different relationship.

Consequently, describing the whole feature as a “Roman road zig-zag” may be describing the later route followed across the landscape, rather than explaining the original purpose of the earthworks underneath it.

Once again we return to the central problem of Ackling Dyke:

The Roman route and the physical dyke do not necessarily have the same construction history.

A Working Sequence for Sovell Down

The evidence presently allows us to test the following model:

Phase 1 – Early landscape engineering
Substantial linear cuts are constructed across Sovell Down.

Phase 2 – Extraction and hydraulic use
A deeper upper channel may intercept water and direct it into the quarry for extraction, processing or downhill transport.

Phase 3 – Lower drainage/transport system
Water and/or extracted material leaves the quarry through lower channels towards the valley and palaeochannel.

Phase 4 – Roman reuse
The Romans encounter an existing network of cuts, banks and routes and incorporate convenient parts into their terrestrial road system.

This sequence is not yet proven.

But unlike simply writing “Roman Road” across the OS map, it produces a series of physical predictions that can actually be tested.

We can examine the quarry stratigraphy.

We can test the geology around D for groundwater interception.

We can measure the remaining channel profiles.

We can establish whether the supposed Roman road possesses a genuine metalled agger beneath these cuts.

And ultimately we can date material sealed beneath the different earthworks.

That is how we should establish the chronology of Ackling Dyke.

Not by assuming that because Romans travelled along the route, the Romans must also have built everything underneath it.

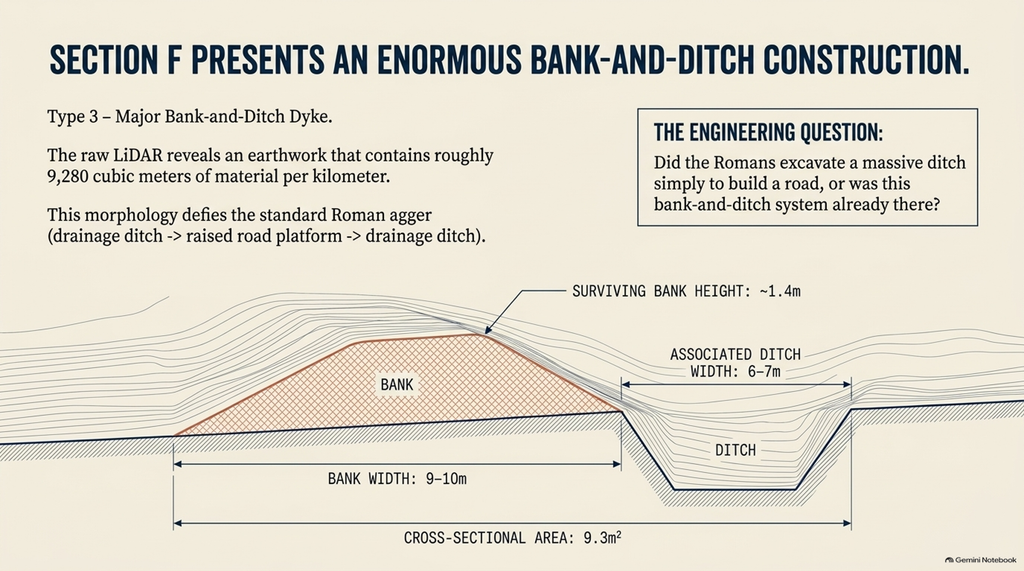

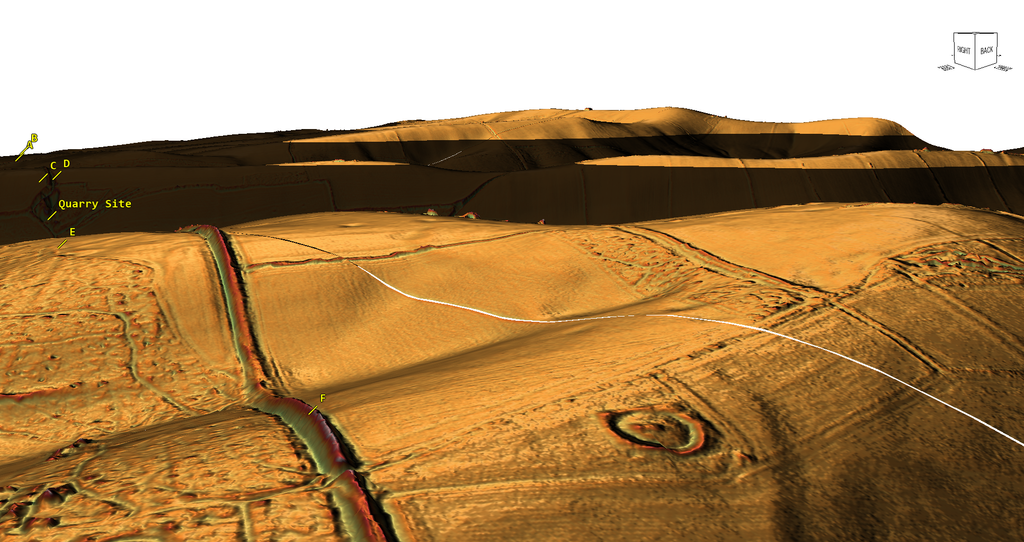

Section F – The First Continuous Dyke

North of the Sovell Down quarry complex, Ackling Dyke changes character again.

For the first time in this investigation we encounter a substantial linear earthwork that continues across the landscape with considerable consistency.

But its construction raises another awkward question for the conventional Roman-road interpretation.

The raw LiDAR profile at F shows a large raised bank approximately 1.4 m above the reconstructed surrounding surface, around 9–10 m across, with a substantial ditch or cut approximately 6–7 m wide immediately beside it.

The form is therefore essentially:

DITCH / CUT → LARGE BANK

rather than the simple form normally imagined for a Roman agger:

drainage ditch → raised road platform → drainage ditch

That distinction matters.

A Roman road may certainly be carried on a substantial agger, and local topography can produce asymmetric sections. So F alone cannot prove that the earthwork is prehistoric.

But neither does the morphology justify simply calling the whole structure a Roman road embankment without further evidence.

What survives here looks more like a major bank-and-ditch earthwork that could have provided an excellent raised route.

The Scale of Construction

The numbers are particularly revealing.

The bank at F contains an estimated 9.28 square metres of raised cross-section.

If that profile continued for just 100 m with approximately the same form, it would represent on the order of:

~928 cubic metres of bank material

before allowing for settlement, erosion or the original greater dimensions of the monument.

Over one kilometre that becomes approximately:

9,280 cubic metres

of surviving raised earthwork.

That is an enormous quantity of material to explain simply as road support.

And because there is an associated cut alongside the bank, the more obvious engineering question becomes:

Was the ditch excavated to obtain material for the bank, or were the bank and ditch performing separate functions?

That is exactly the sort of question that needs stratigraphic excavation.

Not the Same Structure We Saw to the South

This is becoming one of the study’s most important findings.

The line conventionally mapped as Ackling Dyke Roman Road is not presenting a single repeated cross-section.

So far we have encountered:

Moor Crichel: reduced and substantial earthworks of several different magnitudes.

Sovell Down: deep incised channels that appear to interact directly with a quarry and palaeohydrological landscape.

F: a large, continuous bank-and-ditch construction.

Yet modern mapping connects these physically different structures as though they were simply successive pieces of one Roman road.

That is precisely what our LiDAR methodology was designed to test.

Could F Be the Original Dyke?

F is therefore important because this is the first section that actually looks like what the name Ackling Dyke implies:

a substantial linear bank associated with a ditch.

The possibility we now have to investigate is that this is the original major dyke, while the Roman road later used its bank as a ready-made raised route.

That would be entirely different from saying the Romans constructed an unusually enormous agger from scratch.

The distinction is simple:

Roman use of the bank ≠ Roman construction of the bank.

At present we do not have the dating evidence to decide between those two possibilities.

But morphologically, F gives us a clearly different construction class from the quarry channels and the minor connecting routes farther south.

I would provisionally classify it:

Type 3 – Major Bank-and-Ditch Dyke

with approximately:

1.4 m surviving bank height
9–10 m bank width
6–7 m associated ditch width
9.28 m² surviving raised cross-sectional area

That gives us a third measurable engineering type along a route usually presented as one Roman monument.

And that may become one of the strongest recurring patterns in the whole Ackling Dyke investigation.

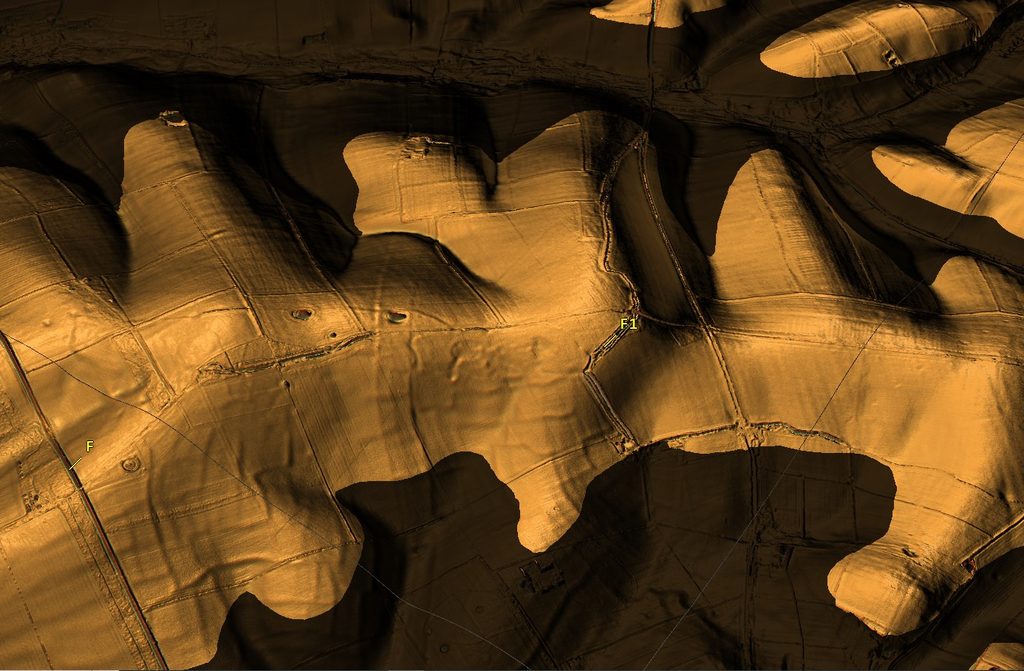

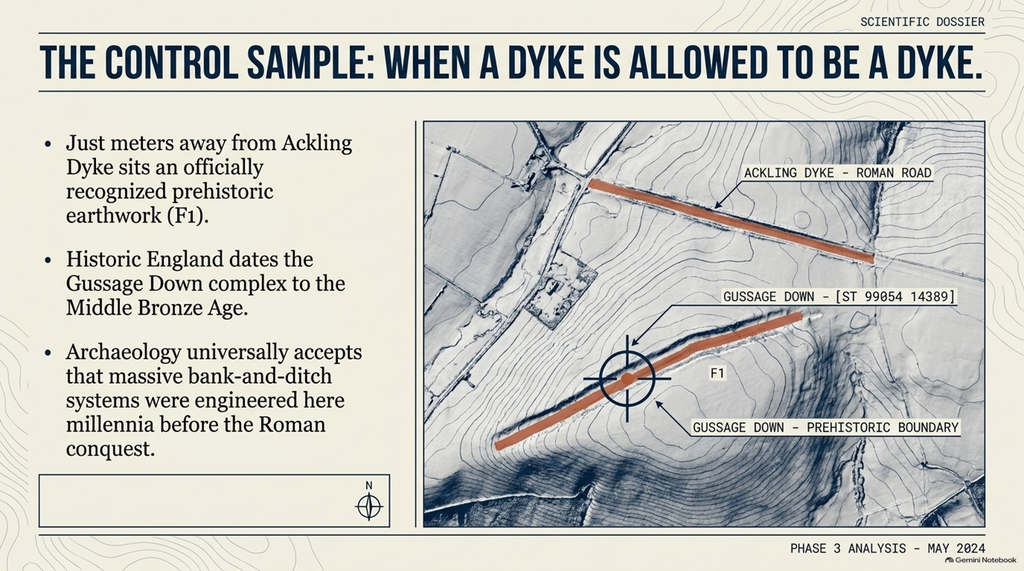

F1 – The Prehistoric Control: When a Dyke Is Allowed to Be a Dyke

F1 is one of the most important locations in this investigation because it lets us stop arguing about terminology and make a direct landscape comparison.

At F, immediately to the west, we have the enormous bank-and-ditch earthwork conventionally labelled:

ACKLING DYKE – ROMAN ROAD

At F1, only a short distance away, we have another major bank-and-ditch system which Historic England explicitly accepts as part of the prehistoric linear-earthwork landscape of Gussage Down.

That gives us something exceptionally useful:

a control sample.

The question is no longer whether Ackling Dyke vaguely “looks prehistoric”.

The question becomes:

Why does the supposed Roman road have the same basic engineering form, landscape position and hydrological relationship as the prehistoric dykes beside it?

F1 is officially prehistoric

The F1 coordinate — approximately ST 99054 14389 — lies inside the scheduled Gussage Down earthwork complex.

Historic England describes this landscape as containing extensive prehistoric linear boundaries. In its northern part, these survive as up to three closely parallel banks with intervening ditches. They form part of a wider landscape of settlement, field systems, cursus monuments and linear boundaries. Historic England

More importantly, Historic England gives the conventional archaeological chronology for this class of monument. It states that excavation and association with other monuments indicate that construction of these substantial linear boundaries spans approximately the millennium beginning in the Middle Bronze Age, although some were reused later. Historic England

That accepted chronology is important here.

We do not need to accept the conventional Bronze Age dating as automatically correct — this investigation is testing those assumptions as well — but we can say something much firmer:

Archaeology itself accepts that huge bank-and-ditch systems were being constructed here before the Roman period.

So the mere presence of an enormous bank and ditch cannot logically be used as evidence that Ackling Dyke must be an unusually massive Roman agger.

Two Major Dykes – One Palaeochannel

The LiDAR reveals another relationship which becomes difficult to ignore.

Both F and F1 rise from the same low palaeochannel landscape before climbing onto the surrounding higher ground.

They do not appear as isolated monuments accidentally placed near one another.

They form part of a wider network of linear cuts and banks radiating away from the former waterways.

At F1, the accepted prehistoric system leaves the low ground and divides into substantial banks and ditches across Gussage Down.

At F, Ackling Dyke does essentially the same thing.

The comparison is therefore:

F – Ackling Dyke

Large bank

substantial ditch
leaves palaeochannel
climbs onto high ground

F1 – Accepted prehistoric dyke

Large bank or banks

substantial ditch or ditches
leaves the same palaeochannel landscape
climbs onto high ground

Yet one is called:

ROMAN ROAD

while the other is called:

PREHISTORIC LINEAR BOUNDARY

Why?

That is the question the conventional interpretation has to answer.

Compare the Engineering

Our raw 1 m DTM measurement at F showed a formidable surviving structure.

The bank is approximately:

1.4 m high

and roughly:

9–10 m wide

with an associated ditch approximately:

6–7 m wide.

The surviving raised cross-sectional area of the bank is about:

9.3 m²

That is not a small roadside mound.

It is a major earthwork.

The recognised prehistoric systems around F1 use precisely the same basic construction technique:

ditch excavation + adjacent bank construction.

Historic England describes multiple banks with medial ditches here. Dorset HER records other nearby accepted prehistoric dykes of comparable scale; one surviving section has a ditch about 7.6 m wide and at least 1.2 m deep, with a bank about 5.5 m wide. Dorset Heritage Explorer

Historic England’s later LiDAR mapping of that same prehistoric dyke describes broad banks reaching approximately 5 m wide, sometimes occurring on both sides of the ditch. Most importantly, the report says that its relationship with Ackling Dyke is currently unknown. Historic England

That last admission is crucial.

Archaeology already knows that a major prehistoric dyke runs towards Ackling Dyke.

It already knows these dykes contain broad banks and substantial cuts.

But the physical relationship between the prehistoric system and Ackling Dyke has never been properly resolved.

So What Makes F Roman?

This is where the conventional interpretation begins to become uncomfortable.

If F were sitting alone in an otherwise empty landscape, one might reasonably suggest that an unusually large Roman agger was constructed there.

But that isn’t the landscape we actually have.

Immediately beside it are officially recognised prehistoric earthworks using the same fundamental construction:

bank + ditch

The wider Gussage landscape contains:

prehistoric linear dykes, multiple banks and ditches, prehistoric field systems, settlements, extraction pits and former waterways.

And through the middle of it runs another enormous bank-and-ditch earthwork — Ackling Dyke.

The main reason one identifies a Roman road is that the later Roman route follows it.

But that demonstrates Roman use.

It does not automatically demonstrate Roman construction.

That distinction is central to this investigation.

The Hydrological Pattern

The palaeochannel relationship may eventually prove even more important than the similarity in construction.

If these linear earthworks were simply territorial boundaries, the repeated relationship with the ancient waterways requires explanation.

But consider an alternative.

The higher ground contains pits and extraction sites.

Gussage is independently known to have supported substantial prehistoric and later metalworking activity.

The low ground provided natural water transport.

The dykes link the two.

Under the hypothesis being tested in this investigation, these large cuts and banks may therefore have had several functions over their lifetime:

water control

movement of raw materials

access between extraction and production areas

movement between high ground and navigable water

and eventually:

reuse as terrestrial roads when water levels declined.

That possibility becomes particularly compelling when an accepted prehistoric dyke at F1 and the supposed Roman road at F display such similar landscape behaviour.

Conventional Dating Versus the Physical Evidence

Under conventional archaeology, the F1 linear systems belong broadly within the later prehistoric sequence beginning in the Middle Bronze Age, with reuse extending into later periods. Historic England

That does not mean our investigation must simply adopt that chronology.

The purpose here is different.

We are using an earthwork that archaeology already regards as prehistoric to establish a physical benchmark.

If Ackling Dyke repeatedly matches that benchmark in:

dimensions,
bank-to-ditch relationship,
orientation,
relationship with palaeochannels,
relationship with extraction pits,
and connections with other accepted prehistoric dykes,

then the traditional claim that its enormous earthwork was simply built as a Roman road requires independent archaeological proof.

The map label is no longer enough.

The F–F1 Problem

We can therefore reduce this entire section to one very simple comparison.

F1

Accepted by archaeology as prehistoric.

A substantial system of banks and ditches.

Leaves the palaeochannel landscape and crosses the high ground.

F

Called Roman because the Roman route follows it.

A substantial bank and ditch.

Leaves the same palaeochannel landscape and crosses the high ground.

And physically?

They belong to the same family of earthwork engineering.

That does not, by itself, prove they were constructed on the same day, century, or millennium.

But it creates an obvious archaeological problem:

If F1 is accepted as a prehistoric dyke, what physical evidence demonstrates that the almost neighbouring F earthwork was constructed from scratch by the Romans rather than being another earlier dyke subsequently reused as their road?

At present, I have found no answer to that question.

And that is precisely why F1 matters.

It gives us the first accepted prehistoric control feature against which Ackling Dyke can be tested.

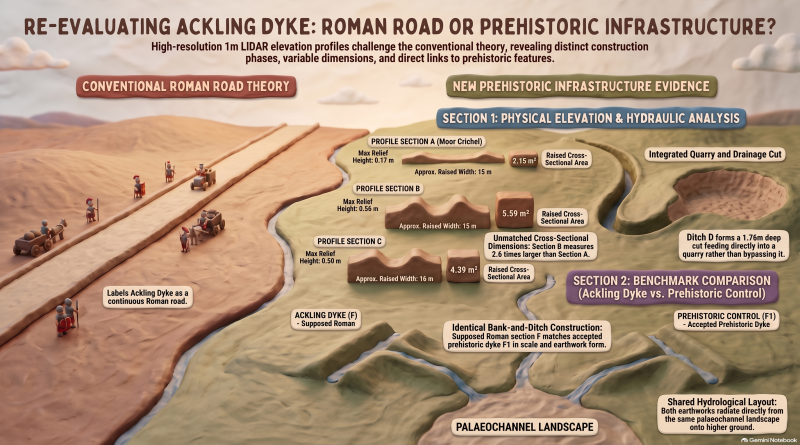

From this point onward we are no longer comparing Ackling Dyke with an imaginary textbook Roman road.

We are comparing it with the actual prehistoric dykes standing beside it.

And if that comparison continues northwards, the traditional story of Ackling Dyke may become increasingly difficult to sustain.

Podcast

Author’s Biography

Robert John Langdon, a polymathic luminary, emerges as a writer, historian, and eminent specialist in LiDAR Landscape Archaeology.

His intellectual journey has included stints as an astute scrutineer in government and major corporate bastions, spanning British Telecommunications, Cable and Wireless, British Gas, and the esteemed University of London.

A decade hence, Robert’s transition into retirement unfurled a chapter of insatiable curiosity. He immersed himself in Politics, Archaeology, Philosophy, and the enigmatic realm of Quantum Mechanics. His academic odyssey took him through the venerable corridors of knowledge hubs such as the Museum of London, University College London, Birkbeck College, The City Literature Institute, and Chichester University.

In the symphony of his life, Robert is a custodian of three progeny and a pair of cherished grandchildren. His sanctuary lies ensconced in the embrace of West Wales, where he inhabits an isolated cottage, its windows framing a vista of the boundless sea – a retreat from the scrutinising gaze of Her Majesty’s Revenue and Customs, an amiable clandestinity in the lap of nature.

Exploring Prehistoric Britain: A Journey Through Time

My blog delves into the fascinating mysteries of prehistoric Britain, challenging conventional narratives and offering fresh perspectives grounded in cutting-edge research, particularly LiDAR technology. I invite you to explore some key areas of my research. For example, I re-examine the Wansdyke, often cited as a defensive structure, in light of new evidence. I’ve presented my findings in my blog post Wansdyke: A British Frontier Wall – ‘Debunked’, and a Wansdyke LiDAR Flyover video further visualises my conclusions.

My work also often challenges established archaeological dogma. I argue that many sites, such as Hambledon Hill, commonly identified as Iron Age hillforts, are not what they seem. My posts Lidar Investigation Hambledon Hill – NOT an ‘Iron Age Fort’ and Unmasking the “Iron Age Hillfort” Myth explore these ideas in detail and offer an alternative view. Similarly, I re-evaluated sites like Cissbury Ring and White Sheet Camp through LiDAR analysis in my posts “Lidar Investigation Cissbury Ring through time” and “Lidar Investigation White Sheet Camp,“ revealing fascinating insights into their true purpose. I have also examined South Cadbury Castle, often linked to the mythical Camelot56.

My research also extends to ancient water management, including the role of canals and other linear earthworks. I have discussed the true origins of Car Dyke in multiple posts, including Car Dyke – ABC News Podcast and Lidar Investigation Car Dyke – North Section, which suggest a Mesolithic origin 2357. I also explore the misidentification of Roman aqueducts, as seen in my posts on the Great Chesters (Roman) Aqueduct. My research has also been greatly informed by my post-glacial flooding hypothesis, which has helped explain landscape transformations over time. I have discussed this hypothesis in several posts, including AI now supports my Post-Glacial Flooding Hypothesis and Exploring Britain’s Flooded Past: A Personal Journey

Finally, my blog also investigates prehistoric burial practices, as seen in Prehistoric Burial Practices of Britain and explores the mystery of Pillow Mounds, often mistaken for medieval rabbit warrens, but with a potential link to Bronze Age cremation in my posts: Pillow Mounds: A Bronze Age Legacy of Cremation? and The Mystery of Pillow Mounds: Are They Really Medieval Rabbit Warrens?. My research also includes astronomical insights into ancient sites, for example, in Rediscovering the Winter Solstice: The Original Winter Festival. I also review new information about the construction of Stonehenge in The Stonehenge Enigma.

Yes. I’d make this far tighter, more inviting and more obviously a gateway into the rest of your work. The present version repeats the website several times and reads more like an author biography than a “what next?” section.

I’d also make the three routes immediately obvious: Explore the Research → Watch the Videos → Read the Books, with Facebook as the discussion/community route.

Other Blogs

2024 Prehistoric Britain Blog Review

8000-year-old Cro-Magnon skull

Vikings, Doggerland, and the Last Survivors of Europe’s Lost Waterworld
