New LiDAR evidence, Pitt-Rivers’ excavations and a forgotten network of water-filled dykes at Woodyates

For more than a century, Ackling Dyke has been treated primarily as a Roman road. The explanation appears simple enough: a Roman route ran from Old Sarum towards Badbury Rings, substantial earthworks survive along parts of that alignment, and the two have consequently become almost synonymous.

But our new LiDAR investigation is beginning to show why that assumption may have created the mystery in the first place.

The Roman road unquestionably existed. Pitt-Rivers excavated it. He found a deliberately constructed road made from successive layers of flint, chalk and gravel, with drainage ditches beside it. Later descriptions of his excavation confirm that this was a genuine engineered Roman road rather than a speculative line drawn across a map.

The problem is that the enormous feature now called Ackling Dyke does not consistently behave like that Roman road.

And at Woodyates, where Ackling meets Bokerley Dyke and a complex of other ancient linear earthworks, the reason may finally be becoming visible.

The mistake may have been confusing a route with the structure beneath it

Our 1 m LiDAR investigation followed 7.56 km of the Ackling alignment and measured the earthwork at regular intervals. Instead of finding one repeated Roman-road cross-section, we found substantially different forms.

Some stretches resemble a road: a relatively modest central route with approximately parallel side ditches.

Others are very different. They consist of a large ditch associated with a substantial bank, sometimes on a scale difficult to explain as mere roadside drainage.

This distinction matters most at Woodyates.

Immediately north of the palaeochannel, our automated analysis identified a remarkably consistent two-ditch road-type signature for approximately 120 m, between about 880 m and 1,000 m along our measured route. Pitt-Rivers’ Section 4 falls at approximately the northern end of this stretch.

But the LiDAR now reveals something we had initially overlooked.

Beside the larger dyke is a much shallower linear impression. It appears to connect into this short road-type section, while towards the south it terminates at the palaeochannel.

That changes the problem completely.

Rather than the enormous dyke itself necessarily being the Roman road, we may be seeing two different structures occupying the same corridor:

an older major dyke system, with a smaller terrestrial road subsequently running beside it and making use of parts of it.

This would explain something that has otherwise seemed contradictory throughout our investigation. Roman activity along Ackling would be real, yet the massive earthworks would not necessarily have been built by the Romans.

Roman use of the route does not automatically equal Roman construction of every earthwork beneath it.

Pitt-Rivers actually found the Roman road

Pitt-Rivers himself strongly supports this distinction.

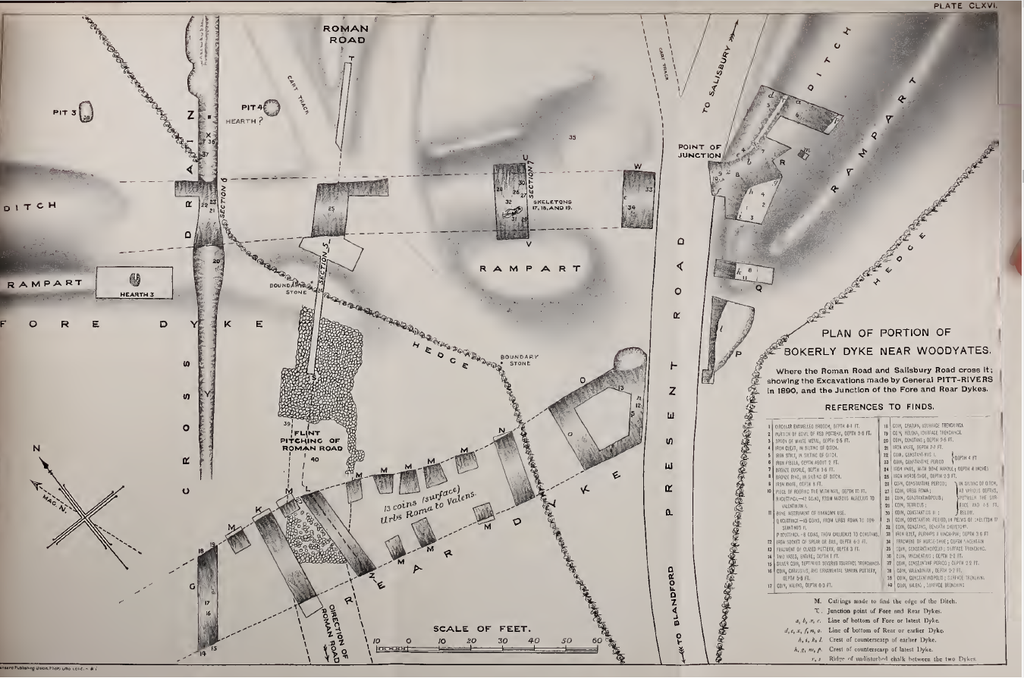

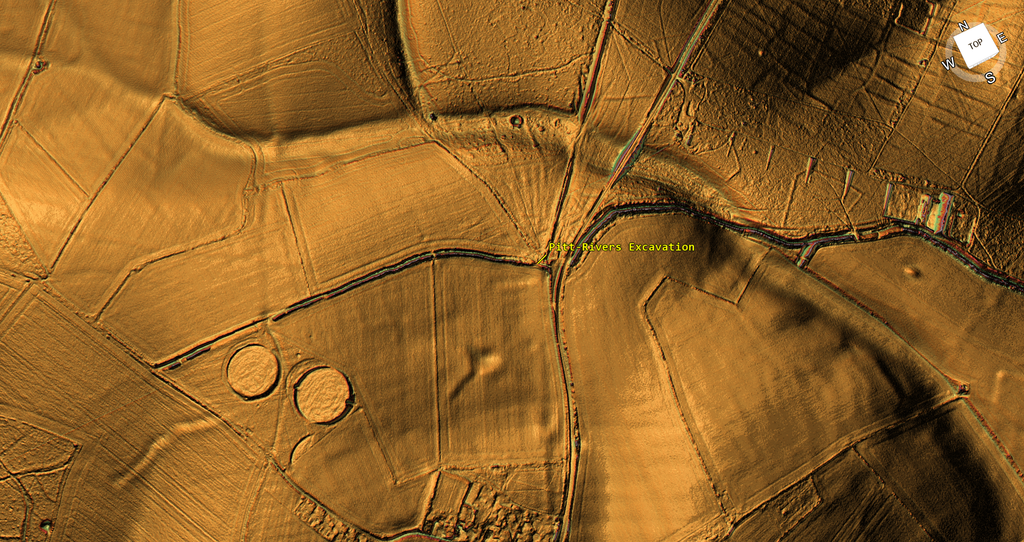

At Bokerley Junction he excavated the Roman road rather than simply assuming its presence. The road had a constructed agger composed of layers of flint, rammed chalk and gravel, with side drainage ditches. Later accounts of his work give an overall width of about 87 feet between the outer parts of the roadside system.

More importantly, Pitt-Rivers showed that Bokerley Dyke and the Roman road were not a single construction.

At one crossing, the dyke had been thrown across the earlier Roman road. Modern archaeological records still recognise this complicated sequence: Bokerley underwent several phases, with sections cutting or blocking the Roman road, and parts were later altered or reopened.

So the archaeological evidence already tells us something crucial:

The road and dyke were separate things.

The new LiDAR allows us to take that observation much further.

Pitt-Rivers also found water management everywhere

Another aspect of Pitt-Rivers’ work becomes enormously significant when we reconsider his excavation against the LiDAR.

He found drains.

Not metaphorical drains. Not modern interpretations of vague cropmarks. Actual excavated ditches which he called the Fore Drain, Boundary Drain, Mid Drain and Cross Drain.

The modern Dorset Historic Environment Record consequently describes the excavated Woodyates settlement as containing a drainage system forming rectilinear enclosures.

Pitt-Rivers went further in his original report.

He recorded the direction in which some of these ditches drained. He noted where drains approached one another without actually touching. He excavated their intersections and even compared their bottom elevations to establish which features could have carried water into which others.

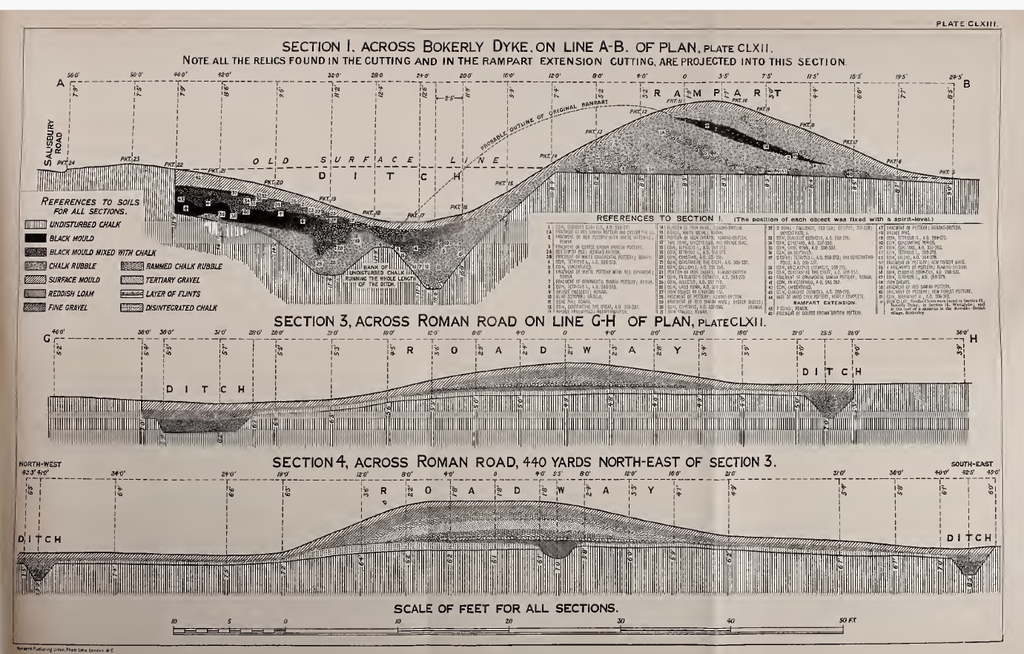

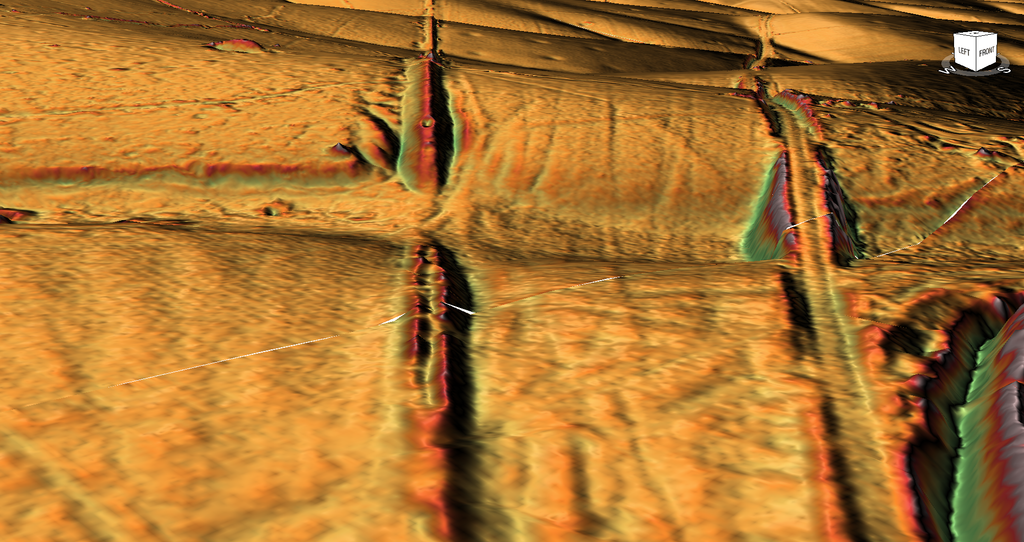

His Section 6 is especially interesting. Pitt-Rivers measured the bottom of the Cross Drain where it crossed the Fore Dyke and found it approximately 6.6 feet higher than the bottom of the dyke ditch. He concluded that the Cross Drain could not have drained through that relationship after the deeper ditch had been constructed unless the latter had already been filled.

That is effectively hydrological relative dating.

Pitt-Rivers was not proposing prehistoric canals. His interpretation remained rooted in the archaeological framework of his time. But his excavation nevertheless establishes something extremely useful for this investigation:

Water movement was physically relevant to these ditches, and their levels mattered.

That fact should not be lost simply because the word Dyke was later interpreted primarily as a defensive earthwork.

Then the LiDAR produces an extraordinary junction

Now look at Grim’s Dyke.

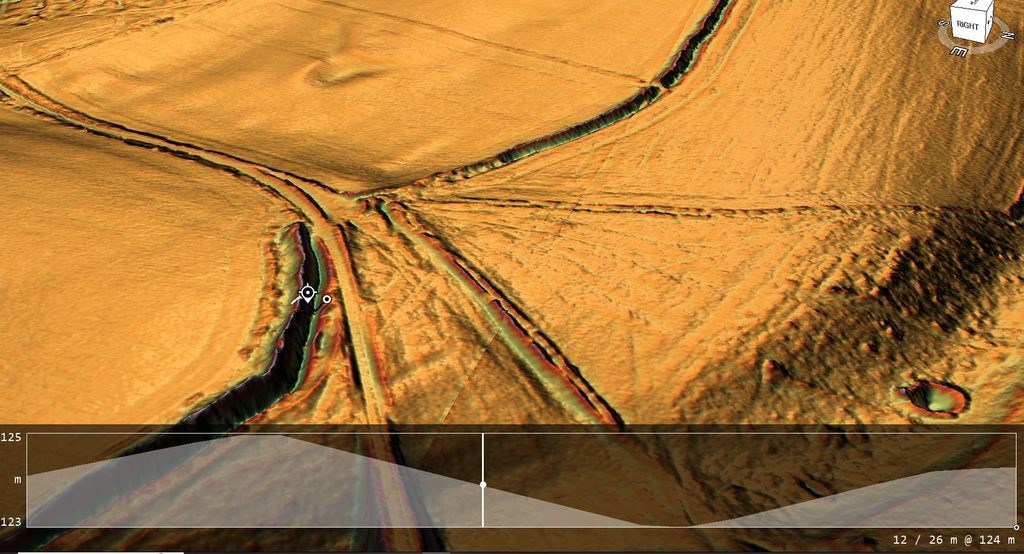

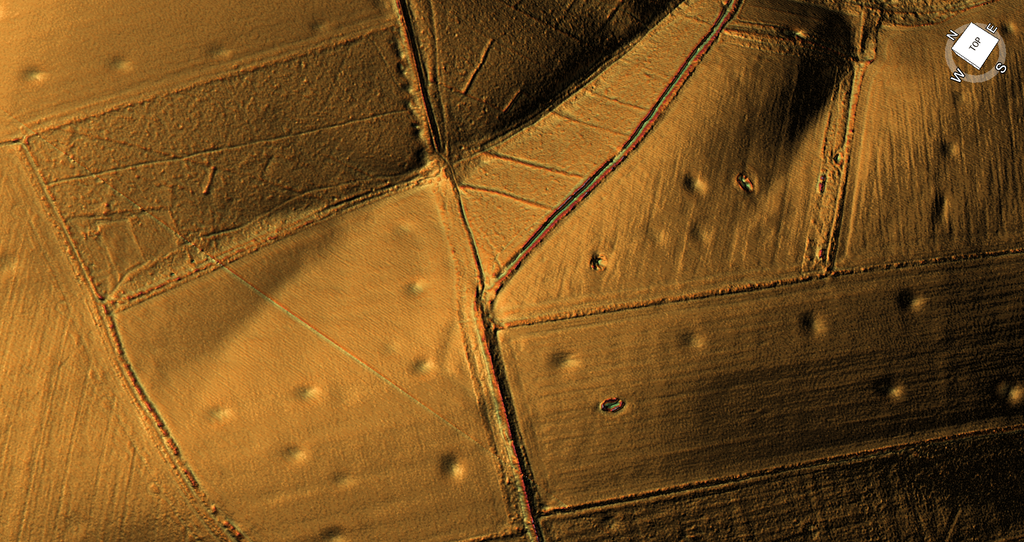

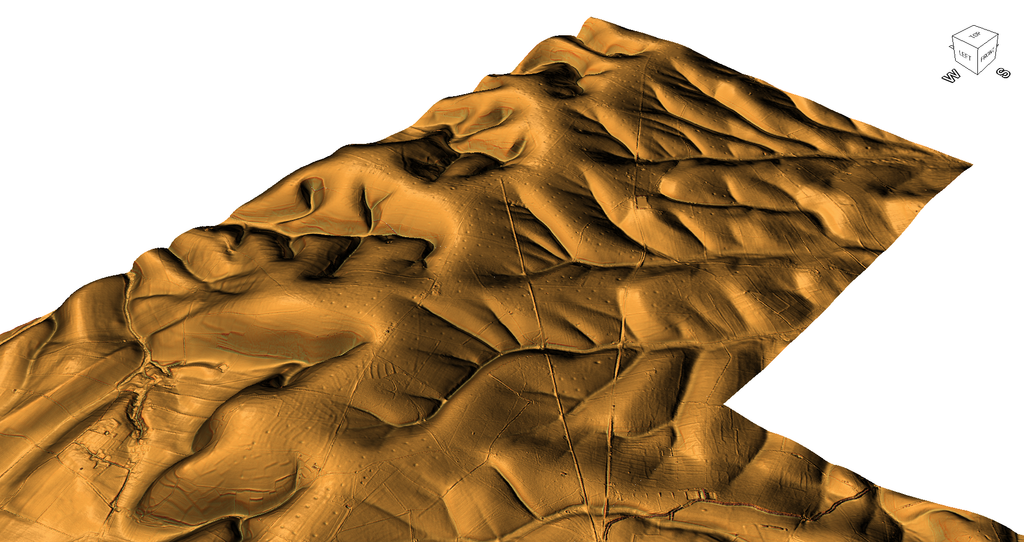

The LiDAR shows a substantial linear ditch approaching the Ackling system. But instead of simply arriving at Ackling like one terrestrial road meeting another, it performs a curious manoeuvre.

The feature runs westwards and then turns south before joining the Ackling earthwork.

For a road, this is unnecessarily awkward.

If travellers wanted to move from Grim’s Dyke onto Ackling, the economical solution would be obvious: reach Ackling and turn onto it.

There is no need to excavate an additional section simply to make the physical ditches join.

Water presents an entirely different engineering requirement.

A road surface merely needs access to another road.

A water channel has to connect physically with the receiving channel.

Suddenly the peculiar dog-leg has a practical purpose.

The ditch does not simply reach the route.

It reaches the ditch.

And our transverse LiDAR profiles confirm that these are not insignificant field gutters. Surviving sections are large cuts, approaching roughly a metre deep in places, with substantial banks and widths measured in tens of metres.

This is therefore not merely a visual resemblance between two lines on a map.

It connects major engineered earthworks.

And now we have a second dyke doing it

The latest LiDAR images make the situation still more interesting.

A second substantial dyke approaches the Ackling/Bokerley complex and again appears to cut into or join the principal linear earthwork.

This means Grim’s Dyke is no longer an isolated curiosity.

We appear to have a pattern.

At Woodyates, Ackling is behaving as a receiving or trunk feature, with other substantial ditches feeding into it.

That is precisely the type of geometry we should search for if these earthworks once formed part of an interconnected water-management or transport system.

This does not, by itself, prove that boats travelled along every ditch.

There are competing possibilities. Large ditches can carry surface water while functioning principally as boundaries; drainage works can accompany settlements; and later alterations can make originally separate monuments appear connected.

But those alternatives must now explain the engineering geometry.

Why do major ditches repeatedly bend toward one another?

Why do they join the large Ackling feature?

Why did their bottom elevations matter sufficiently for Pitt-Rivers to investigate drainage?

And why does the much smaller road-like feature appear alongside the dyke instead of simply occupying the enormous earthwork itself?

The palaeochannel may provide the missing answer

The small road impression is particularly revealing.

It runs beside the major dyke, connects with the approximately 120 m two-ditch road section identified by our quantitative analysis, and then appears to terminate at the palaeochannel.

For a continuous Roman highway, that termination requires explanation.

For a later terrestrial route operating in a landscape where an earlier water system was still important—or where the older infrastructure dictated the route—it is much easier to understand.

The palaeochannel becomes the junction between two transport modes.

The major dyke reaches the water system.

The later road reaches the same point.

As water levels declined, terrestrial movement could progressively replace water transport, and convenient banks and alignments could be reused.

This produces a very different history of Ackling Dyke.

It does not require us to deny the Roman road.

It explains it.

The Roman road mystery may therefore have been a false choice

For years the argument has effectively been framed as:

Was Ackling Dyke a Roman road, or was it something older?

Our evidence suggests that may be the wrong question.

It could be both, but at different times and in different physical forms.

The substantial ditch-and-bank earthworks may represent an older landscape infrastructure.

The Romans later travelled through the same corridor, sometimes using the raised banks, sometimes constructing their own smaller road beside them, sometimes crossing older dykes, and sometimes rebuilding sections after those dykes interrupted the route.

Pitt-Rivers’ excavation demonstrates exactly this kind of chronological complexity at Bokerley. The official archaeological record itself recognises several construction and modification phases, while also noting that Bokerley follows a landscape in which earlier prehistoric boundaries existed.

LiDAR adds the missing landscape-scale picture.

Pitt-Rivers could excavate individual trenches.

We can now see how the entire network connects.

Pitt-Rivers supplied the archaeology; LiDAR supplies the landscape

This is why the Woodyates evidence is potentially the most important finding in the Ackling investigation so far.

We are no longer arguing merely that a particular bank is too large to be a Roman road.

We now have several independent observations converging on the same alternative explanation:

the genuine Roman road has its own identifiable construction; the enormous dyke is morphologically different; Pitt-Rivers excavated a genuine drainage network around Bokerley; Grim’s Dyke makes an apparently unnecessary turn so that its ditch physically joins the Ackling system; another major dyke appears to do the same; and the smaller road-like feature beside Ackling terminates at the palaeochannel rather than behaving like one uninterrupted monumental agger.

None of those observations alone proves a prehistoric canal network.

Together, however, they create a testable engineering model which the conventional explanation now has to compete against.

And importantly, this model does not require Pitt-Rivers to have been wrong.

Quite the opposite.

His excavation records may contain the evidence needed to understand what the LiDAR is showing us more than 130 years later.

A new working reconstruction

The simplest reconstruction now emerging is that an earlier landscape contained substantial ditch-and-bank earthworks connected with former waterways. These may have served several functions over their long lives—water control, drainage, access to resources, boundaries and potentially navigation or transport.

As hydrological conditions changed, those earthworks remained in the landscape.

Later communities reused them.

When the Roman road system arrived, the builders did not necessarily need to ignore thousands of metres of existing engineered banks and corridors. They could use them where convenient and construct smaller connecting road sections where necessary.

At Woodyates we may actually be seeing that process frozen in the terrain:

old dyke → palaeochannel → later road connection → reused dyke → Roman road.

The enormous structure and the Roman route need never have been the same age.

And once that possibility is recognised, many of Ackling Dyke’s apparent contradictions begin to disappear.

Faulston Down and Puddletown Forest — Why Does the Dyke Stop?

The Woodyates evidence becomes even more significant when compared with other sections of Ackling Dyke.

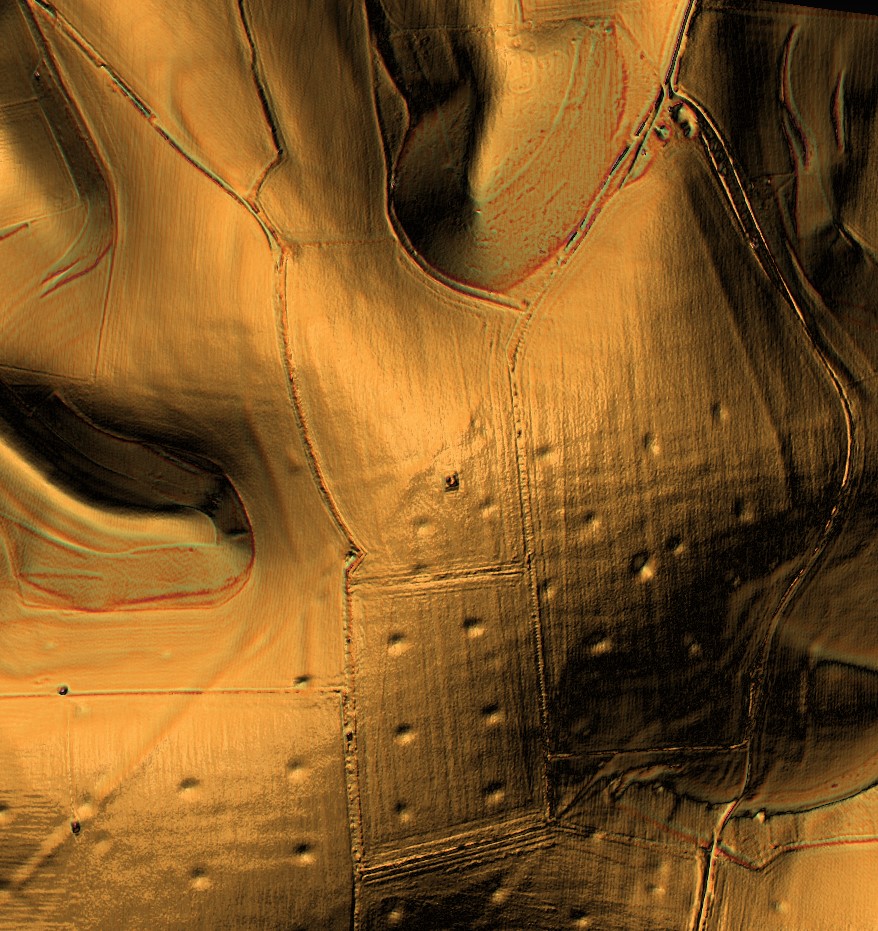

At Faulston Down, Ackling Dyke does something difficult to explain if it was conceived as one continuous Roman road: the major earthwork simply terminates on the high ground at the top of the hill.

A road normally has somewhere to go.

If the original intention had been to build a continuous highway across the landscape, stopping a massive engineered earthwork on the summit of a hill makes little practical sense.

Yet we have already encountered almost exactly the same phenomenon farther west at Puddletown Forest.

There, LiDAR revealed not simply an unexplained termination, but an extraordinary concentration of extraction features surrounding the end of the dyke — hundreds of pits spread across the high ground.

That changes the interpretation completely.

The dyke does not necessarily stop because construction was abandoned.

It may stop because it had reached its destination.

If these pits represent prehistoric mineral or raw-material extraction, then the large ditch-and-bank system can be interpreted as infrastructure serving those extraction areas: a route carrying people, tools, and material between the upland workings and the lower palaeochannels and waterways.

Under that model, no major dyke section needs to continue indefinitely across the countryside.

Some sections were effectively branches.

They connected particular resource zones to the wider transport network.

That explains why Ackling repeatedly behaves in ways that make little sense for a single road:

palaeochannel → substantial dyke → extraction area → termination.

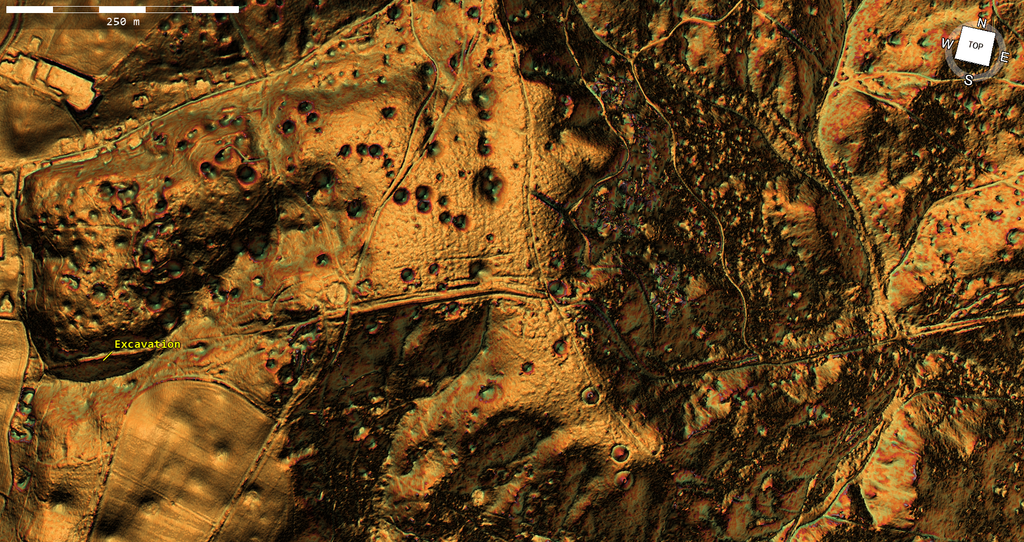

At Puddletown Forest the relationship with the pits is striking.

At Faulston Down we see the same basic behaviour again: the substantial earthwork reaches the high ground and ends.

And at Woodyates we now see the other end of the system — major dykes converging and physically joining one another close to the ancient watercourses.

Taken together, those observations suggest a far more coherent function than an isolated defensive boundary or one continuously constructed Roman highway.

Mineral extraction may explain the network

This also gives us a possible answer to the most basic question of all:

Why expend the enormous labour required to excavate these dykes?

The answer may have been economic.

The repeated association between the dyke system and concentrations of pits suggests that transporting extracted material could have been one of its principal functions.

LiDAR alone cannot identify the precise mineral or raw material represented by every pit, so excavation and geological sampling remain necessary. But the landscape relationship itself is measurable:

the pits occupy the higher extraction zones;

the substantial linear earthworks connect those zones with lower ground;

and the palaeochannels provide the natural continuation of the transport network.

This matters because it removes the need to imagine Ackling Dyke as one enormous project built on a single occasion.

It is beginning to look like an infrastructure network that developed as required.

A new extraction site could produce a new branch.

Falling water levels could require an extension.

A redundant water route could later become a bank or track.

Existing branches could be enlarged, joined or redirected.

That would naturally produce exactly what the LiDAR shows us today: sections with different dimensions, different ditch arrangements, and different construction histories.

Ackling was not built in one phase

This may be one of the most important conclusions from the entire investigation.

The physical variation along Ackling should perhaps not be regarded as a problem requiring one explanation.

It may reflect its history.

The dyke system could have developed over centuries or millennia as the landscape, water table and location of extraction activity changed.

This would explain why we encounter:

major single-ditch and bank sections;

shorter two-ditch road sections;

shallow connecting tracks;

branches joining other dykes;

terminations at palaeochannels;

and terminations beside concentrations of extraction pits.

In other words, there was never necessarily one “Ackling Dyke construction event.”

What later cartographers joined into a single line may represent many episodes of engineering.

That model is already familiar from our investigation of Car Dyke, where different stretches appear to represent different periods of construction and reuse. In the Car Dyke study, straight sections crossing higher ground and still surrounded by quarries were identified as possible later Roman additions, in contrast to earlier sections whose route remained closely associated with palaeochannels.

Ackling may preserve the same process.

Pitt-Rivers may have recorded the Roman phase rather than the beginning

This is where Pitt-Rivers becomes particularly valuable.

His excavations show unmistakable Roman use of the landscape.

He found a genuine engineered Roman road approximately 3 feet 6 inches high, with parallel drains roughly 4 feet 6 inches wide and 2 feet 6 inches deep on either side.

He also documented a much more complicated drainage landscape around Bokerley and Woodyates. One ditch ran north-to-south and then east-to-west towards the dyke ditch; another substantial Boundary Drain approached but did not quite touch it; and other drains intersected this network.

Most revealingly, Pitt-Rivers was sufficiently concerned with water movement to compare the bottom levels of the ditches themselves. At Section 6 he recorded the Cross Ditch as 6.6 feet higher than the Fore Dyke ditch and specifically reasoned from that difference about whether it could have carried water after the deeper ditch existed.

That is crucial.

Pitt-Rivers was already recording a landscape in which roads, drains and older earthworks had different relationships and different dates.

He even cut trenches specifically to trace one ditch to its junction with another.

Seen through the new LiDAR evidence, his excavation may therefore document not the construction of one Roman monument, but the Roman occupation and modification of a much older engineered landscape.

The Romans did not need to invent the system

This gives us a much more plausible model for the Roman presence at Ackling.

The Romans did what successful societies have always done:

They reused useful infrastructure.

If a substantial dyke already linked mineral-rich high ground with the valleys and waterways, there was little reason to ignore it.

They could clean sections out.

They could extend them.

They could construct roads along the adjacent banks.

They could cut across older earthworks where necessary.

And they could continue exploiting the same mineral resources that had attracted earlier communities to the landscape.

That is essentially the pattern proposed in our Car Dyke work as well: Roman engineering does not require the entire system to be Roman in origin.

The Romans could simply represent another phase of use.

This distinction is fundamental:

Roman use of a dyke is not proof of Roman construction of the dyke.

And at Woodyates, Pitt-Rivers’ own excavation now helps us separate the two.

The emerging function of Ackling Dyke

The evidence from the different Ackling sections is now starting to converge.

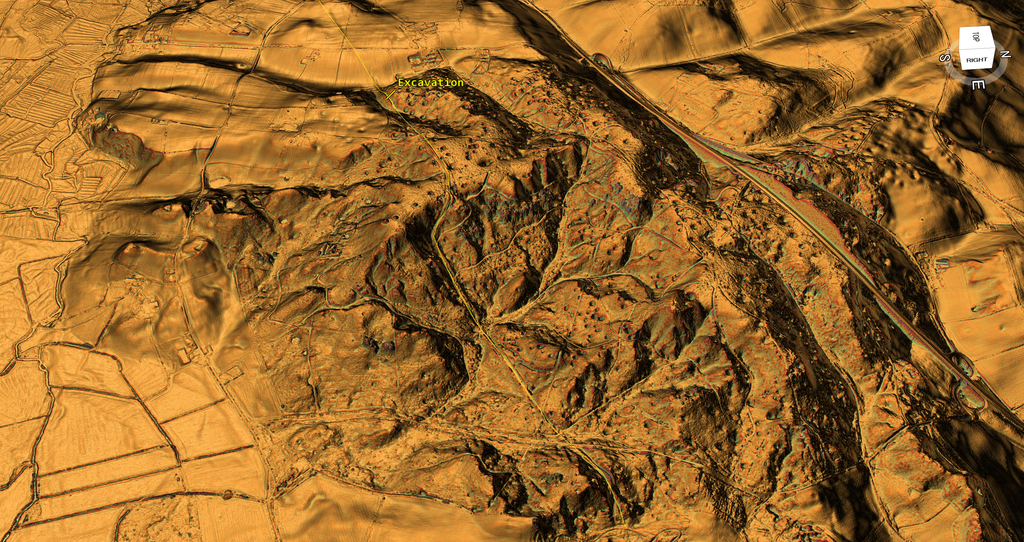

At Puddletown Forest, the dyke terminates beside a vast extraction landscape.

At Faulston Down, another major section stops on the high ground rather than behaving like a through-road.

At Woodyates, different dykes physically converge upon Ackling near the palaeochannels.

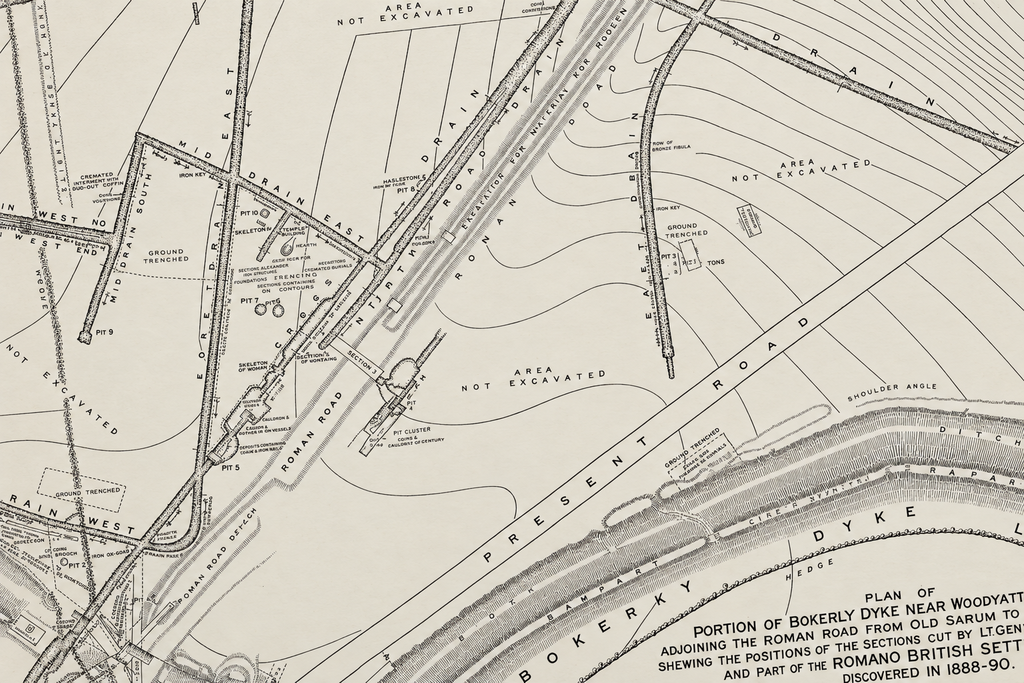

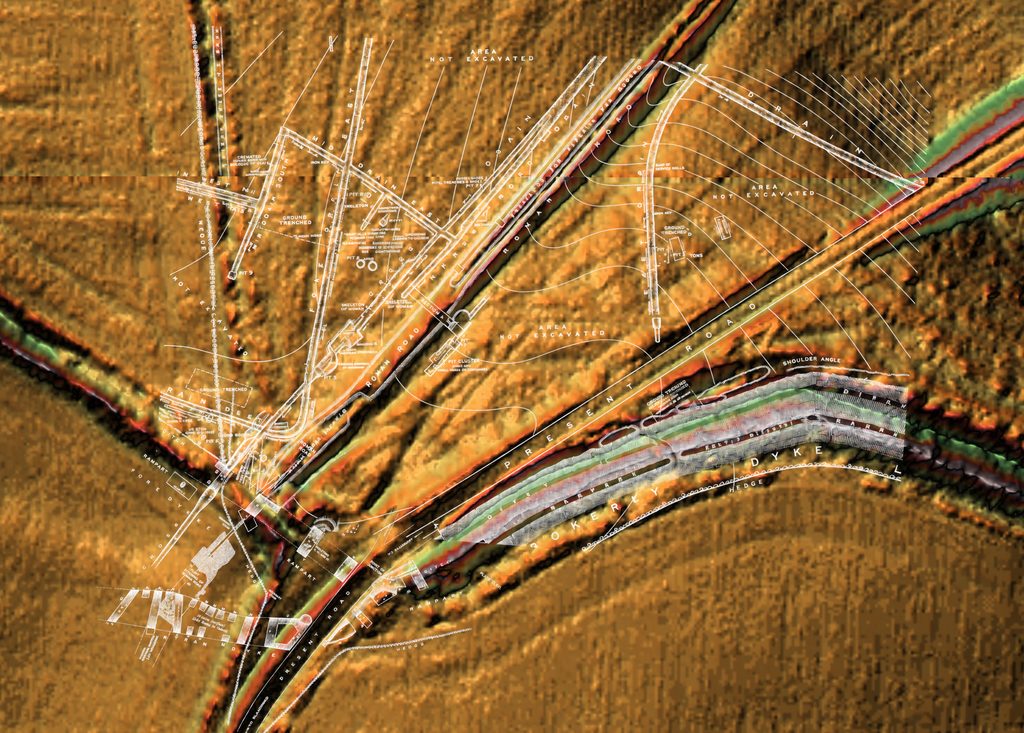

Pitt-Rivers recorded a functioning network of drains and demonstrated that the relative elevations of their ditch bottoms affected water movement.

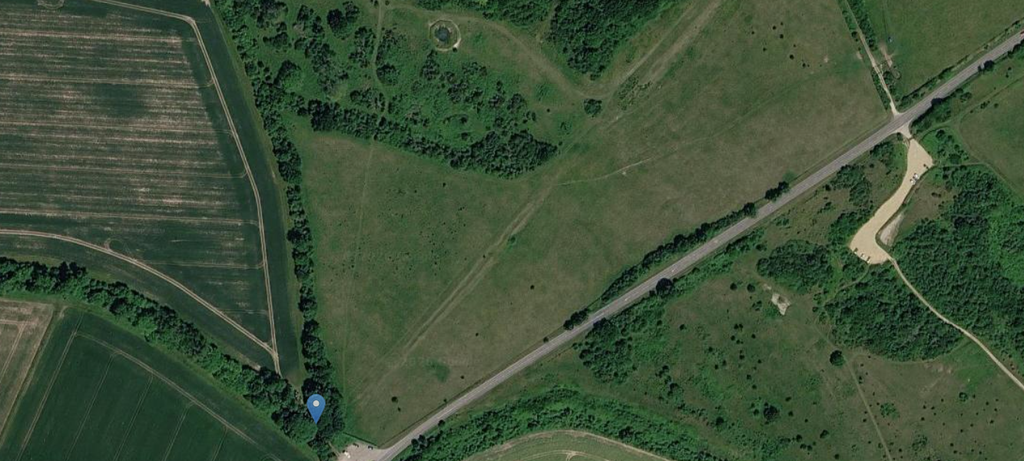

Beside the massive Ackling earthwork, we can identify a much shallower road-like feature that appears to join the short Roman-style section and terminate towards the palaeochannel.

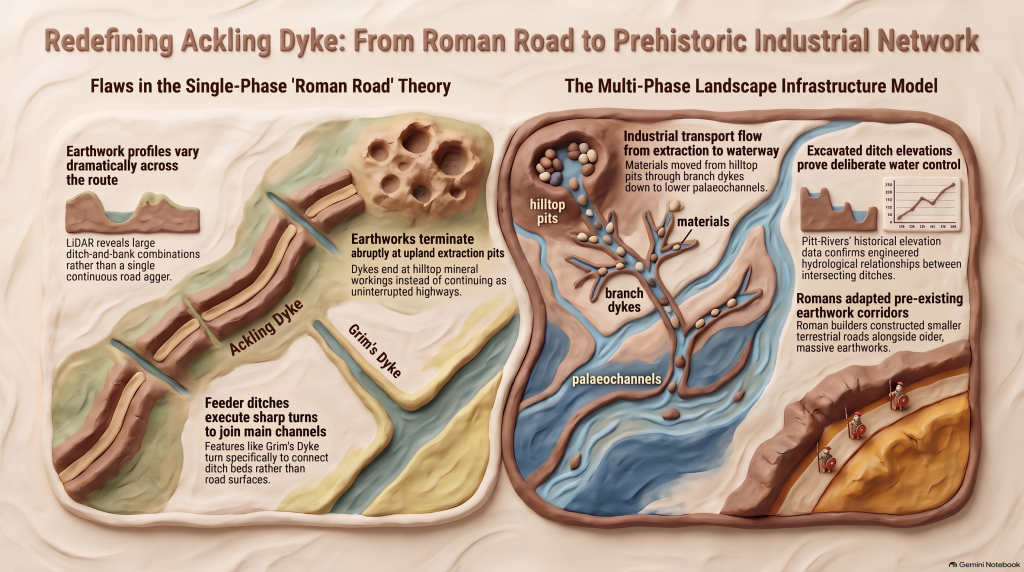

This gives us a coherent working model:

extraction sites on the high ground → branch dykes → main dyke system → palaeochannels and navigable waterways → later terrestrial reuse as the landscape dried.

If that interpretation survives further testing along the route, then Ackling Dyke was not originally one road at all.

It was infrastructure.

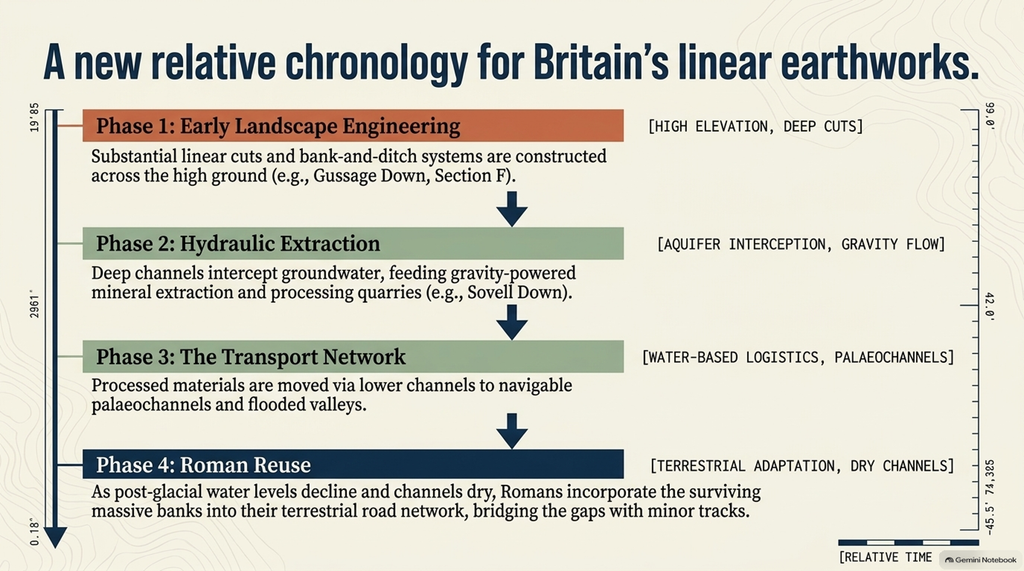

And because extraction occurred repeatedly over long periods, the system itself would inevitably have developed in phases.

New branches were added as new deposits were exploited.

Existing channels would have been extended downward as water levels changed.

Some sections would have fallen out of use.

Others would eventually have been adapted into terrestrial routes.

By the Roman period, the landscape already contained precisely the kind of engineered corridor that Roman surveyors and miners could exploit.

That explains both sides of the mystery:

why the major dyke is much older and more complicated than a conventional Roman road — and why genuine Roman roads and Roman material are nevertheless found along it.

The Romans did not necessarily build Ackling Dyke.

They may simply have been its latest major users.

And if the same mineral resources were still worth extracting, they probably had exactly the same economic reason for being there as the people who first dug the system.

Podcast

Author’s Biography

Robert John Langdon, a polymathic luminary, emerges as a writer, historian, and eminent specialist in LiDAR Landscape Archaeology.

His intellectual journey has included stints as an astute scrutineer in government and major corporate bastions, spanning British Telecommunications, Cable and Wireless, British Gas, and the esteemed University of London.

A decade hence, Robert’s transition into retirement unfurled a chapter of insatiable curiosity. He immersed himself in Politics, Archaeology, Philosophy, and the enigmatic realm of Quantum Mechanics. His academic odyssey took him through the venerable corridors of knowledge hubs such as the Museum of London, University College London, Birkbeck College, The City Literature Institute, and Chichester University.

In the symphony of his life, Robert is a custodian of three progeny and a pair of cherished grandchildren. His sanctuary lies ensconced in the embrace of West Wales, where he inhabits an isolated cottage, its windows framing a vista of the boundless sea – a retreat from the scrutinising gaze of Her Majesty’s Revenue and Customs, an amiable clandestinity in the lap of nature.

Exploring Prehistoric Britain: A Journey Through Time

My blog delves into the fascinating mysteries of prehistoric Britain, challenging conventional narratives and offering fresh perspectives grounded in cutting-edge research, particularly LiDAR technology. I invite you to explore some key areas of my research. For example, I re-examine the Wansdyke, often cited as a defensive structure, in light of new evidence. I’ve presented my findings in my blog post Wansdyke: A British Frontier Wall – ‘Debunked’, and a Wansdyke LiDAR Flyover video further visualises my conclusions.

My work also often challenges established archaeological dogma. I argue that many sites, such as Hambledon Hill, commonly identified as Iron Age hillforts, are not what they seem. My posts Lidar Investigation Hambledon Hill – NOT an ‘Iron Age Fort’ and Unmasking the “Iron Age Hillfort” Myth explore these ideas in detail and offer an alternative view. Similarly, I re-evaluated sites like Cissbury Ring and White Sheet Camp through LiDAR analysis in my posts “Lidar Investigation Cissbury Ring through time” and “Lidar Investigation White Sheet Camp,“ revealing fascinating insights into their true purpose. I have also examined South Cadbury Castle, often linked to the mythical Camelot56.

My research also extends to ancient water management, including the role of canals and other linear earthworks. I have discussed the true origins of Car Dyke in multiple posts, including Car Dyke – ABC News Podcast and Lidar Investigation Car Dyke – North Section, which suggest a Mesolithic origin 2357. I also explore the misidentification of Roman aqueducts, as seen in my posts on the Great Chesters (Roman) Aqueduct. My research has also been greatly informed by my post-glacial flooding hypothesis, which has helped explain landscape transformations over time. I have discussed this hypothesis in several posts, including AI now supports my Post-Glacial Flooding Hypothesis and Exploring Britain’s Flooded Past: A Personal Journey

Finally, my blog also investigates prehistoric burial practices, as seen in Prehistoric Burial Practices of Britain and explores the mystery of Pillow Mounds, often mistaken for medieval rabbit warrens, but with a potential link to Bronze Age cremation in my posts: Pillow Mounds: A Bronze Age Legacy of Cremation? and The Mystery of Pillow Mounds: Are They Really Medieval Rabbit Warrens?. My research also includes astronomical insights into ancient sites, for example, in Rediscovering the Winter Solstice: The Original Winter Festival. I also review new information about the construction of Stonehenge in The Stonehenge Enigma.

Yes. I’d make this far tighter, more inviting and more obviously a gateway into the rest of your work. The present version repeats the website several times and reads more like an author biography than a “what next?” section.

I’d also make the three routes immediately obvious: Explore the Research → Watch the Videos → Read the Books, with Facebook as the discussion/community route.

Further Reading — Explore the Evidence

The investigation doesn’t end with this article.

Prehistoric Britain brings together hundreds of articles, LiDAR investigations, field discoveries, archaeological studies and original research exploring Britain’s prehistoric landscape from a different perspective.

Follow the evidence across ancient waterways, lost landscapes, Stonehenge and Avebury, prehistoric engineering, submerged Britain, ancient DNA and the effects of post-glacial flooding — comparing established archaeological interpretations with alternative explanations suggested by the physical evidence.

🎬 Watch the Investigations

Prefer to watch rather than read?

The Robert John Langdon YouTube channel has more than 200 documentaries, investigations, and video presentations that bring the research to life through maps, LiDAR, archaeological evidence, and landscape reconstruction.

Discover investigations including 13 Things That Don’t Make Sense in History, Silbury Avenue – The Lost Stone Avenue, Stonehenge, prehistoric waterways, submerged landscapes and many more.

📚 Explore the Book Library

Go deeper into the evidence through Robert John Langdon’s growing collection of books and specialist studies, including:

• The Stonehenge Hoax – 13 Things That Don’t Make Sense in History
• Car Dyke – Prehistoric Dyke
• Wansdyke – Prehistoric Dyke
• Offa’s Dyke – Prehistoric Dyke
• Silbury Avenue – The Lost Stone Avenue
• The Vallum – At Hadrian’s Wall
• Stonehenge: The World’s First Computer
• Avebury’s Lost Stone Avenue

Many of these investigations connect directly with the evidence discussed throughout the website, allowing individual discoveries to be examined as part of the much wider prehistoric landscape.

🔎 Read the Main Trilogy

Three major works bring together the central strands of the research:

The Post-Glacial Flooding Hypothesis — investigates the evidence for radically different water levels, waterways and landscapes in prehistoric Britain.

The Stonehenge Enigma — re-examines the chronology, landscape and purpose of one of the world’s most famous prehistoric monuments.

Dawn of the Lost Civilisation — explores the evidence for sophisticated communities, technology and maritime connections far earlier than traditionally assumed.

💬 Join the Investigation

New discoveries, LiDAR surveys and research are discussed as they happen in the Prehistoric Britain Facebook Group.

Join the discussion, challenge the evidence, offer alternative interpretations and follow new investigations as they develop.

Don’t just read the accepted story. Explore the evidence, compare the interpretations, and decide for yourself.

Other Blogs
